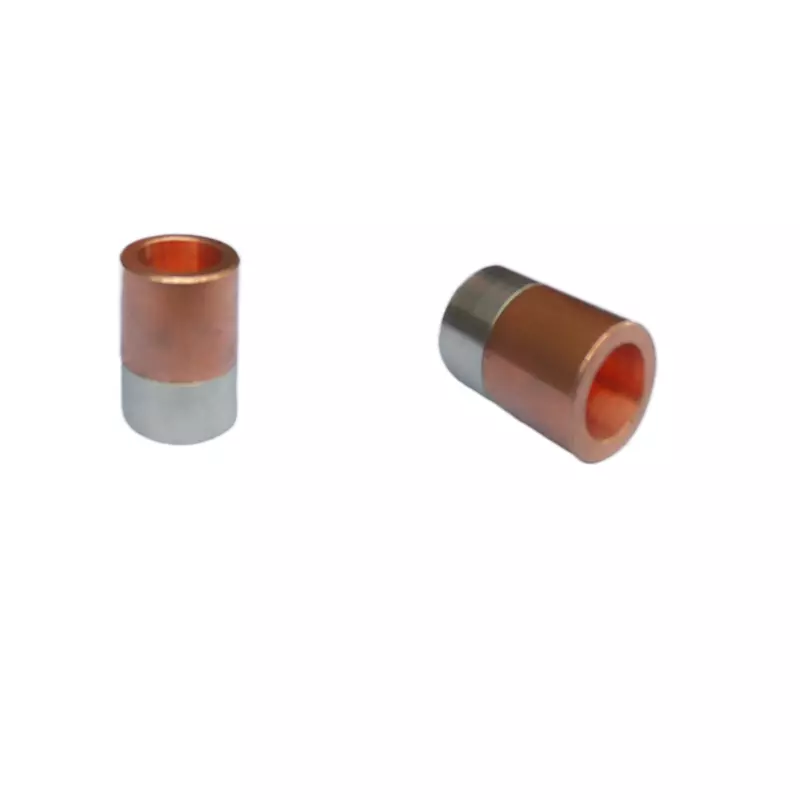

Anti-Reverse Welding Electrode Cap | High-Precision Anti-Misinstallation Welding Accessory
Product Overview
Guangzhou Jiahe Automation Equipment Co., Ltd. Anti-Reverse Welding Electrode Cap is a professional precision resistance welding accessory, exclusively developed to solve the common pain points of misinstallation, reverse installation, poor contact and unstable welding quality caused by incorrect assembly of traditional electrode caps in automated welding production lines. As a core product in our welding electrode accessory series, this anti-reverse electrode cap integrates innovative anti-reverse structural design, high-grade conductive alloy materials and precision machining technology, which can effectively prevent reverse installation during assembly, ensure accurate positioning and tight fitting with electrode rods, and further guarantee stable current transmission, uniform welding force and neat welding seams. It is widely applicable to various resistance welding equipment such as fixed spot welders, suspended spot welders and robotic spot welders, serving as a key consumable part that directly affects welding efficiency and product qualification rate. Compared with ordinary electrode caps, our anti-reverse model not only retains the basic functions of conduction, heat dissipation and wear resistance, but also adds a targeted anti-misinstallation structure, which greatly reduces assembly errors, shortens installation time, reduces maintenance costs caused by reverse installation, and is especially suitable for high-volume, high-standard automated welding scenarios.
Tailored for automated welding assembly needs, our anti-reverse welding electrode cap adopts a unique anti-reverse positioning structure (such as asymmetric groove, positioning notch or directional guide design), which can only be correctly installed in one direction, fundamentally eliminating the hidden dangers of poor welding contact, electrode overheating, welding spatter and even equipment damage caused by reverse installation. It perfectly matches mainstream electrode rod specifications (such as M8, M10, M12 threads) and is fully compatible with various resistance welding processes such as spot welding, projection welding and seam welding. Made of high-performance conductive materials, it has excellent electrical conductivity, superior wear resistance and high-temperature stability, ensuring long-term stable operation even under high-frequency welding conditions (generally usable for 1000-1200 welding points before needing regrinding or replacement). It is widely used in automotive manufacturing, hardware processing, sheet metal fabrication, precision machinery, electrical equipment and other industrial fields, especially suitable for production lines with strict requirements on assembly accuracy and welding quality, helping customers improve production efficiency and reduce defective product rates significantly.
Premium Material & Advanced Manufacturing Process
Adhering to the production principle of "Materials as the foundation, technology as the core, and quality as the life", we select high-performance conductive alloy materials for our Anti-Reverse Welding Electrode Cap, mainly including chromium zirconium copper (CrZrCu, CuCrZr), RWMA Class 2 (C18200) copper-chromium alloy, and optional dispersion-strengthened copper (dispersion copper) for special working conditions — materials highly recommended for high-volume, high-frequency welding operations, especially suitable for welding galvanized plates, hot or cold rolled steels, high-strength steels and coated materials. All raw materials undergo strict incoming inspection, including purity testing and performance verification, to ensure stable electrical conductivity (≥85% IACS for CrZrCu), strong heat resistance (recrystallization temperature up to 500℃ for CrZrCu) and excellent mechanical properties (HRB 75-85 for CrZrCu), laying a solid foundation for the electrode cap's long-term stable operation. For scenarios requiring welding of galvanized plates, the optional dispersion copper material effectively avoids chemical reactions between chromium and zinc in galvanized plates, preventing the generation of copper-like substances that affect welding quality, which is a common problem of ordinary chromium zirconium copper electrode caps. Additionally, we can provide electrodes made of ECuSi or ECuSnB materials for welding copper alloys and brass, ensuring excellent welding performance and corrosion resistance.
Our Anti-Reverse Welding Electrode Cap adopts an integrated manufacturing process of cold extrusion forming, high-precision CNC machining, professional heat treatment and fine surface polishing. We adopt advanced cold-forming technology that retains the original hardness of the material, ensuring the overall structural integrity and high structural strength of the electrode cap, effectively avoiding fracture, deformation or wear under high-frequency welding pressure and high-temperature working conditions. The anti-reverse positioning structure (asymmetric groove, positioning notch, etc.) is precisely machined with ultra-high precision, ensuring that the electrode cap can only be installed in the correct direction, with tight fitting and no looseness after assembly. The inner hole and contact surface of the electrode cap are polished to a high finish, with smooth edge treatment to avoid edge discharge, concentrate current distribution and prevent welding spatter, ensuring neat welding seams. Strict tolerance control (±0.005~±0.01mm) is implemented throughout the production process, and every finished product undergoes comprehensive quality inspection, including dimensional accuracy testing, conductivity detection, wear resistance verification, anti-reverse function test and surface defect inspection, to ensure zero defects before delivery. Standard models are available in common shapes such as P, D, E and F, and their specifications (diameter 8~20mm, length 15~30mm) can be customized according to electrode rod sizes and welding equipment requirements, compatible with mainstream welding equipment at home and abroad. The contact surface is processed with ultra-precise grinding technology, ensuring tight contact with the electrode rod to achieve stable current transmission, which is particularly suitable for the resistance welding principle requiring concentrated heat generation.
Core Product Advantages
1. Innovative Anti-Reverse Design, Zero Misinstallation
The electrode cap is equipped with a unique anti-reverse positioning structure (asymmetric groove, positioning notch or directional guide), which is scientifically designed according to the assembly direction of electrode rods and welding equipment. This structure fundamentally eliminates the possibility of reverse installation, ensuring that the electrode cap can only be correctly installed in one direction, avoiding assembly errors caused by manual operation or automated assembly equipment. It solves the common problems of poor contact, unstable current transmission, electrode overheating, welding spatter and even equipment damage caused by reverse installation of traditional electrode caps, greatly improving the assembly efficiency and welding stability. The anti-reverse structure is integrated with the electrode cap body, with high structural strength, not easy to wear or deform during long-term use, ensuring long-term reliable anti-reverse performance. This design is particularly suitable for automated assembly lines, reducing the need for manual inspection of installation direction and further improving production efficiency.
2. Excellent Conductivity & Efficient Heat Dissipation
Made of high-performance copper alloy materials, the Anti-Reverse Welding Electrode Cap features superior electrical and thermal conductivity, which can quickly transfer current and heat to the welding contact point, reduce energy loss and avoid overheating of the electrode cap during long-term high-frequency welding operations. CrZrCu material, as the preferred material for high-end welding electrode caps, ensures stable conductivity and heat dissipation, maintaining high strength even under long-term high-temperature operation, which effectively extends the service life of the electrode cap. Some models are equipped with built-in heat dissipation grooves, which further improves heat dissipation efficiency, avoids softening and deformation of the electrode cap under high-temperature conditions, and enables it to outperform cast or forged electrode caps with similar structures in terms of durability and stability. The optional dispersion copper material not only has excellent conductivity but also solves the problem of electrode sticking when welding galvanized plates, reducing the need for frequent grinding and improving production efficiency. For welding scenarios involving aluminum alloys that require DC reverse connection (for cathode breaking effect), the electrode cap can also be optimized to adapt to the electrochemical characteristics of aluminum alloys, ensuring stable welding quality.
3. Ultra-High Dimensional Precision & Stable Assembly
Adopting high-precision CNC machining and strict quality control system, all dimensions of the Anti-Reverse Welding Electrode Cap (including inner hole diameter, outer diameter, length, anti-reverse positioning structure size and taper) meet international standards (GB, DIN, ISO, ANSI) and can be perfectly matched with standard electrode rods and welding equipment. The inner hole of the electrode cap is precisely machined to match the electrode rod specifications (such as M8, M10, M12 threads), ensuring tight fitting and stable assembly, avoiding loose connection or misalignment during welding, and guaranteeing consistent welding quality. High dimensional consistency ensures that the electrode cap can be seamlessly integrated with automated assembly equipment, fully adapting to high-speed automated welding production lines. The strict tolerance control also ensures that the anti-reverse positioning structure fits tightly with the electrode rod, preventing installation deviation and ensuring uniform force application during welding, which is essential for maintaining stable welding current and forming qualified weld nuclei, and also conforms to the high-precision requirements of automated welding production.
4. Strong Customization Capability for Diversified Needs
We support full non-standard customization according to customer-provided drawings, samples and actual welding working conditions. Whether it is the anti-reverse structure design (asymmetric groove, positioning notch, directional guide, etc.), size specifications (diameter 8~20mm, length 15~30mm, thread specifications M8~M12), material selection (CrZrCu, dispersion copper, ECuSi/ECuSnB), shape (P, D, E, F type) or the addition of heat dissipation grooves, our professional R&D and machining team can provide targeted solutions. We can also customize the electrode cap according to the specific model of welding equipment (fixed spot welder, suspended spot welder, robotic spot welder), electrode rod size and workpiece materials (galvanized plates, high-strength steels, copper alloys, aluminum alloys, etc.), meeting the diversified and personalized welding needs of different industries. For special welding scenarios such as high-pressure projection welding, we can also add a refractory metal face to the contact surface, enhancing the durability of the electrode cap under high-pressure and high-heat conditions.
5. Long Service Life & High Cost-Effectiveness
The combination of premium alloy materials and advanced cold-forming manufacturing process greatly enhances the wear resistance, high-temperature oxidation resistance and impact resistance of the Anti-Reverse Welding Electrode Cap. CrZrCu material, with its excellent wear resistance (3-5 times that of pure copper), effectively extends the electrode cap's service life, and its high-temperature stability avoids softening and deformation during welding, which is a common problem of ordinary copper electrode caps. The anti-reverse positioning structure, processed with high-precision grinding, is not easy to wear or damage under long-term high-frequency welding operations, ensuring long-term reliable anti-reverse performance. This not only reduces production downtime and maintenance costs caused by frequent replacement and reverse installation, but also lowers the overall production cost for customers, achieving high cost-effectiveness. The optional dispersion copper material further extends the service life when welding galvanized plates by avoiding electrode sticking, while the heat dissipation groove design enhances heat dissipation efficiency and prolongs service life. Its durable performance also ensures stable welding quality in mass production, reducing the rate of defective products caused by electrode cap problems and improving production efficiency, which is particularly suitable for high-volume automated production lines.
Wide Application Scenarios
Our Anti-Reverse Welding Electrode Cap is widely used in various automated resistance welding equipment, highly compatible with mainstream spot welders, projection welders and seam welders at home and abroad, serving as a key consumable part for resistance welding operations. Its core application fields include:
-
Automotive manufacturing: Used in the welding of auto body components, chassis, engine brackets, interior parts and electronic components (such as electromagnetic trip coil welding), suitable for high-volume automated production lines, ensuring firm bonding and consistent quality, especially for high-strength steel components and parts requiring accurate positioning. It is also applicable to welding of automotive parts with galvanized, Dacromet or black oxide surface treatment, and perfectly matches the assembly needs of automated welding robots, adapting to the high-efficiency production needs of the automotive industry. The anti-reverse design effectively avoids assembly errors in robotic welding, ensuring stable welding quality of automotive components.
-
Hardware & fastener industry: Precision welding of hardware tools, mechanical parts, fasteners and electronic components, improving welding efficiency and product reliability, especially for products requiring precise positioning and smooth welding joints. It is also suitable for welding of fasteners with different surface treatments, meeting environmental protection and corrosion resistance requirements. The anti-reverse design reduces assembly errors in batch production, ensuring consistent welding quality of fasteners, and the optional dispersion copper material is suitable for welding galvanized fasteners.
-
Sheet metal fabrication: Used in the welding of sheet metal components, cabinets, brackets and small-size sheet metal parts, adapting to the high-precision requirements of sheet metal welding, and avoiding welding defects caused by reverse installation of electrode caps. For small-size sheet metal parts and narrow operation spaces, the compact design of the electrode cap can better adapt to the working environment, and the smooth contact surface ensures concentrated current distribution and neat welding seams, which is in line with the characteristics of sheet metal spot welding operations. The anti-reverse design also facilitates quick replacement, improving production efficiency in sheet metal processing.
-
General industrial manufacturing: High-standard resistance welding in high-volume production scenarios, such as electrical equipment, electronic components, construction machinery, instrumentation, railway accessories and shipbuilding interior parts, ensuring stable welding performance and high weld strength, especially for workpieces with strict positioning requirements. It is also applicable to welding scenarios involving galvanized plates, copper alloys and aluminum alloys, expanding the application scope. The anti-reverse design is particularly suitable for automated production lines with high assembly accuracy requirements, reducing manual intervention and improving production efficiency, and also conforms to the safety standards of welding operations.
Why Choose Jiahe Anti-Reverse Welding Electrode Cap?
With more than 10 years of deep cultivation in the field of automated welding equipment and accessories, Guangzhou Jiahe is a national high-tech enterprise with a complete R&D, production and quality control system. Our Anti-Reverse Welding Electrode Cap inherits Jiahe's consistent quality concept, integrating professional anti-reverse design, premium materials and advanced technology. It is widely recognized by domestic and foreign customers for its reliable anti-reverse performance, precise dimensions, long service life and strong customization capability, establishing a good brand reputation in the global welding industry. We strictly control every link from raw material selection to production and inspection, ensuring that each electrode cap meets international standards (GB, DIN, ISO, ANSI) and customer requirements, especially for the precise processing of the anti-reverse positioning structure which is the core of the product. The high-precision machining and premium material selection ensure the electrode cap's stability in high-demand welding scenarios, and our material selection fully considers the characteristics of different welding workpieces, such as galvanized plates, high-strength steels and aluminum alloys.
We provide one-stop after-sales service and technical support, responding quickly to customer needs such as product consultation, customization scheme design, installation guidance and after-sales maintenance. We are committed to becoming a reliable partner in the field of automatic welding, providing customers with cost-effective Anti-Reverse Welding Electrode Cap solutions and boosting the stability and efficiency of automated production lines, whether for standard welding scenarios or special material workpiece welding (such as galvanized plates, aluminum alloys, electronic components).
