Bent Electrode Tip | High-Precision Custom Welding Electrode Tip
Product Overview

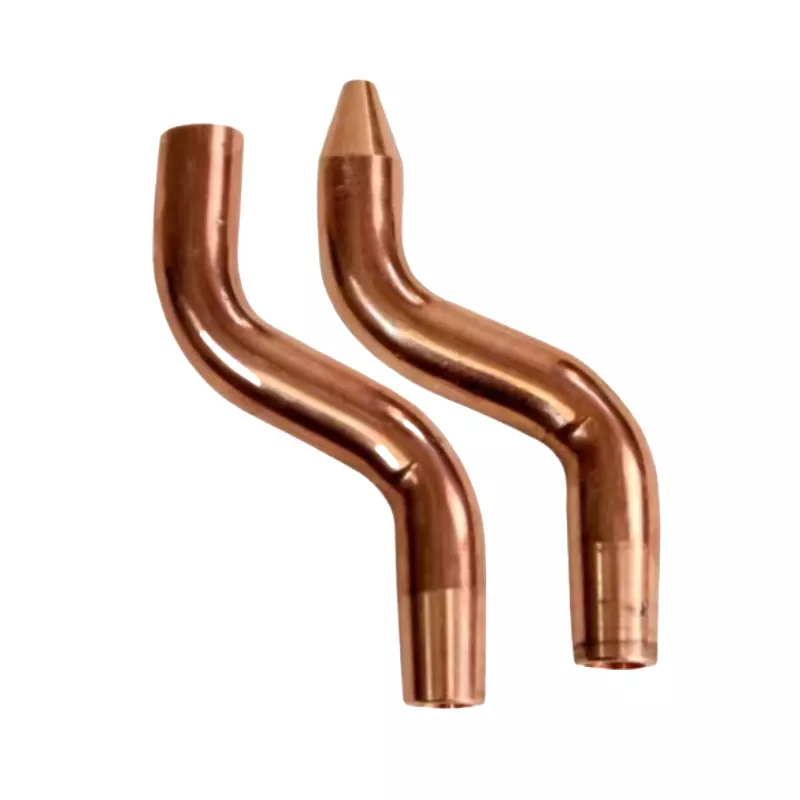

Guangzhou Jiahe Automation Equipment Co., Ltd. Bent Electrode Tip is a high-precision resistance welding accessory, specifically engineered for narrow, hard-to-reach welding positions that standard straight electrode tips cannot access. As an essential component of automated welding systems, our bent electrode tip is independently developed and manufactured to solve the welding challenges of complex workpieces, such as flanges, corners and confined spaces, delivering consistent, high-quality welding results for various industrial manufacturing scenarios.
As a key part of our special-shaped electrode series, our bent electrode tip integrates premium materials, advanced machining technology and customized design, perfectly matching mainstream spot welding, projection welding and seam welding equipment at home and abroad. With excellent electrical conductivity, superior wear resistance, strict dimensional accuracy and long service life, it has become a reliable choice for high-standard automated welding production lines in automotive, home appliance, hardware and sheet metal industries.
Premium Material & Advanced Manufacturing Process
Adhering to the production principle of "Materials as the foundation, technology as the core, and quality as the life", we select high-performance alloy materials for our bent electrode tips, mainly including chromium zirconium copper (CrZrCu) and RWMA Class 2 (C18200) copper-chromium alloy — materials highly recommended for high-volume production operations, especially for spot welding hot or cold rolled steels, galvanized and coated materials. All raw materials undergo strict incoming inspection to ensure stable performance, excellent conductivity and strong heat resistance.
Our bent electrode tips are manufactured through integrated cold extrusion forming and high-precision CNC machining processes, combined with professional heat treatment and fine surface treatment. The cold extrusion forming ensures the overall structural integrity and high structural strength, effectively avoiding fracture, deformation or wear under high-frequency welding pressure and high-temperature working conditions[7]. Strict tolerance control is implemented throughout the production process, and the welding face and bending angle are precisely machined to meet the requirements of complex welding positions. Every finished bent electrode tip undergoes comprehensive quality inspection, including dimensional accuracy testing, conductivity detection, wear resistance verification and surface defect inspection, to ensure zero defects before delivery.
Core Product Advantages
1. Precision Bent Design for Confined Spaces
The optimized bent structure is customized according to the actual welding space and workpiece shape, effectively breaking through the limitations of standard straight electrode tips. It can easily reach narrow gaps, complex corners and special-position workpieces (such as flanges and tight corners) that are difficult to access, realizing barrier-free welding. The flexible bending angle (customizable) and reasonable offset design ensure full contact between the electrode tip and the welding surface, guaranteeing uniform welding spots and improving the welding qualification rate.
2. Excellent Conductivity & Heat Dissipation
Made of high-performance copper alloy materials, the bent electrode tip features superior electrical and thermal conductivity, which can quickly transfer current and heat, reduce energy loss and avoid overheating of the electrode tip during long-term operation. Some models are equipped with built-in water cooling channels extending to the nose, which further improves heat dissipation efficiency and enables the electrode tip to outlast cast or forged tips with similar geometry.
3. Ultra-High Dimensional Precision & Stability
Adopting high-precision CNC machining and strict quality control, all dimensions of the bent electrode tip (including overall length, outer diameter, welding face diameter, offset and taper) meet international standards and can be perfectly matched with standard welding equipment (such as 4RW, 5RW standard tapers). High dimensional consistency ensures stable assembly and consistent welding quality, fully adapting to high-speed automated welding production.
4. Strong Customization Capability
We support full non-standard customization according to customer-provided drawings, samples and actual welding working conditions. Whether it is a single bend or double bend design, special bending angle, custom welding face shape (flat face, pointed face, offset face), or specific dimensions (overall length, offset, welding face diameter), our R&D and machining team can provide targeted solutions to meet diversified and personalized welding needs.
5. Long Service Life & Cost-Effective
The combination of premium alloy materials and advanced manufacturing processes enhances the wear resistance and high-temperature oxidation resistance of the bent electrode tip, making it not easy to deform, wear or damage under long-term high-frequency welding operations. Its long service life effectively extends the replacement cycle, reduces production downtime and maintenance costs, and further lowers the overall production cost for customers.
Wide Application Scenarios
Our Bent Electrode Tip is widely used in various automated resistance welding equipment, highly compatible with mainstream welding machines at home and abroad. It is especially suitable for welding scenarios with narrow spaces and complex workpieces, and its core application fields include:
-
Automotive manufacturing: Welding of auto parts, sheet metal flanges, chassis and body components, and other hard-to-reach positions
-
Home appliance industry: Welding of metal parts for refrigerators, washing machines, air conditioners, including narrow-space components
-
Hardware & sheet metal fabrication: Precision welding of complex structural parts, small components and narrow-space workpieces
-
General industrial manufacturing: High-standard resistance welding of special-position workpieces, high-volume production lines requiring stable welding performance
Why Choose Jiahe Bent Electrode Tip?
With more than 10 years of deep cultivation in the field of automated welding equipment and accessories, Guangzhou Jiahe is a national high-tech enterprise with a complete R&D, production and quality control system. Our bent electrode tips inherit the consistent quality concept of Jiahe, and are widely recognized by domestic and foreign customers for their reliable performance, precise dimensions and long service life, establishing a good brand reputation in the welding industry.
We provide one-stop after-sales service and technical support, responding quickly to customer needs such as product consultation, customization scheme design and installation guidance. We are committed to becoming a reliable partner in the field of automated welding, providing customers with cost-effective bent electrode tip solutions and boosting the stability and efficiency of automated production lines.
