Pointed Electrode Cap | High-Precision Pointed Welding Accessory for Resistance Welding
Product Overview
Guangzhou Jiahe Automation Equipment Co., Ltd. Pointed Electrode Cap is a professional core consumable accessory for resistance welding systems, exclusively designed to solve the pain points of precise positioning, concentrated current transmission and stable welding for small-size workpieces, narrow welding points and special-shaped joints in automated production lines. As a critical component that fits tightly over the electrode shank superscript:1, our pointed electrode cap integrates an optimized pointed contact design, premium copper alloy materials and advanced precision machining technology, aiming to address common challenges such as unstable positioning, uneven current distribution, welding spatter and poor joint firmness encountered by traditional flat or round electrode caps. Distinguished from standard electrode cap models, our pointed model features a precision-machined pointed contact surface (point angle adjustable from 30° to 90°, tip diameter 0.5-3mm) that can concentrate welding current on a small contact area, achieve accurate positioning for tiny welding points, and deliver neat, firm and consistent welding joints for large-volume industrial manufacturing scenarios. It is widely compatible with fixed spot welders, suspended spot welders and robotic spot welders superscript:1 superscript:2, making it ideal for automotive manufacturing, home appliance production, hardware processing, precision electronics and other industries that require high-efficiency, high-standard resistance welding, especially for workpieces with small welding points, thin materials or strict positioning requirements.
Our pointed electrode cap is engineered with a precision-machined pointed contact surface and a matching inner taper design (1/9.6 standard taper) superscript:1, which perfectly fits electrode shanks of various specifications and ensures tight connection without loosening during high-frequency welding vibration. Made of high-performance copper alloy materials, it combines excellent electrical conductivity, superior high-temperature resistance and strong wear resistance, effectively withstanding the harsh working environment of high heat, high pressure and welding spatter in resistance welding processes. As a cost-effective welding consumable, it typically supports 1000-1200 welding points before needing regrinding or replacement superscript:1, balancing performance and economy for our global customers. Each pointed electrode cap undergoes strict quality inspection before leaving the factory, ensuring consistent dimensional accuracy and stable performance, which is crucial for maintaining welding quality in mass production. The optimized pointed design ensures concentrated current distribution, avoids local overheating and workpiece burns, and achieves precise positioning for small welding points — a key advantage of pointed electrodes in precision welding scenarios.
Premium Material & Advanced Manufacturing Process
Adhering to the production principle of "Materials as the foundation, technology as the core, and quality as the life", we select high-performance copper alloy materials for our Pointed Electrode Cap, mainly including chromium zirconium copper (CrZrCu, CuCrZr), dispersion-strengthened copper (dispersion copper), and optional alumina copper (CuAl₂O₃) for special working conditions superscript:1. Chromium zirconium copper is the preferred material for most welding scenarios, as adding trace amounts of chromium and zirconium to pure copper significantly improves its hardness and high-temperature softening point while maintaining excellent electrical conductivity superscript:1. Dispersion copper is specially designed for galvanized plate welding, effectively solving the problem of electrode sticking caused by chemical reactions between chromium and zinc in traditional chromium zirconium copper electrodes superscript:1. All raw materials undergo strict incoming inspection, including material composition testing, conductivity verification and high-temperature resistance detection, to ensure stable performance (conductivity ≥85% IACS for CrZrCu, continuous use temperature up to 500℃) and lay a solid foundation for long-term stable operation. We also offer customized material options according to customer welding needs, such as tungsten-copper alloy for high-temperature welding scenarios — leveraging the material’s high-temperature resistance to protect the pointed contact surface from deformation and wear.
Our Pointed Electrode Cap adopts an integrated manufacturing process of cold extrusion forming, high-precision CNC turning, professional heat treatment and fine surface polishing. The advanced cold extrusion technology retains the original hardness and structural integrity of the material, ensuring the electrode cap’s resistance to deformation and fracture under high-pressure welding conditions, especially for the pointed tip which bears concentrated stress and high temperature during welding. The pointed contact surface is precision-machined to a high finish (Ra≤0.2μm), with smooth edges to avoid edge discharge, concentrate current distribution and prevent welding spatter, ensuring neat and beautiful welding seams — a critical feature for pointed electrodes to avoid current dispersion and tip damage. Strict tolerance control (±0.005~±0.01mm) is implemented throughout the production process, covering key dimensions such as inner diameter (10~20mm for standard models), outer diameter (12~25mm), overall length (15~30mm, including 13×20, 16×23 and other common specifications), point angle (30°~90°) and tip diameter (0.5~3mm). The inner taper is precisely processed to match standard electrode shanks, ensuring tight fit and stable current transmission. Every finished product undergoes comprehensive quality inspection, including dimensional accuracy testing, conductivity detection, wear resistance verification and surface defect inspection, to ensure zero defects before delivery. We also adopt advanced surface treatment technology to enhance the electrode cap’s anti-oxidation performance, extending its service life in harsh welding environments and preventing tip oxidation and corrosion.
Core Product Advantages
1. Optimized Pointed Design, Precise Positioning & Concentrated Current
The integral pointed contact surface is the core design feature of our electrode cap, specially optimized for resistance welding scenarios that require precise positioning for small welding points, thin materials or special-shaped joints. The precisely adjustable point angle (30°~90°) and tip diameter (0.5~3mm) allow the electrode cap to focus current on a small contact area, achieving accurate positioning for tiny welding points and solving the problem of current dispersion and unstable positioning encountered by traditional flat electrode caps. The pointed tip is designed with a smooth transition to ensure uniform stress distribution, avoiding fracture or deformation at the tip during high-pressure welding. The standard inner taper (1/9.6) ensures perfect compatibility with mainstream electrode shanks, preventing loosening or poor contact during high-frequency welding vibration, and ensuring stable current transmission and welding performance superscript:1. Additionally, the pointed design ensures that the contact surface fully fits small welding points, guaranteeing consistent pressure application and current conduction, and significantly improving the qualification rate of welded products in precision welding scenarios.
2. Premium Copper Alloy, Excellent Conductivity & Heat Dissipation
Made of high-quality copper alloy materials, our Pointed Electrode Cap features superior electrical and thermal conductivity, which can quickly transfer current and heat to the welding contact point, concentrate current on the pointed tip, reduce energy loss and avoid overheating of the electrode cap during long-term high-frequency welding operations. Chromium zirconium copper, as the preferred material, ensures stable conductivity and heat dissipation, with a recrystallization temperature of up to 500℃, maintaining high strength even under long-term high-temperature operation. Dispersion copper is specially designed for galvanized plate welding, effectively avoiding electrode sticking and improving production efficiency superscript:1. The optional alumina copper material provides excellent high-temperature mechanical properties, with a softening temperature of up to 900℃, suitable for extreme working conditions. The material’s excellent thermal conductivity, combined with the optimized pointed structure, ensures rapid heat dissipation, preventing the electrode cap from softening or deforming due to overheating — a key advantage for pointed electrodes that often work with concentrated current and high heat, which significantly extends its service life and reduces replacement frequency.
3. Ultra-High Dimensional Precision & Wide Compatibility

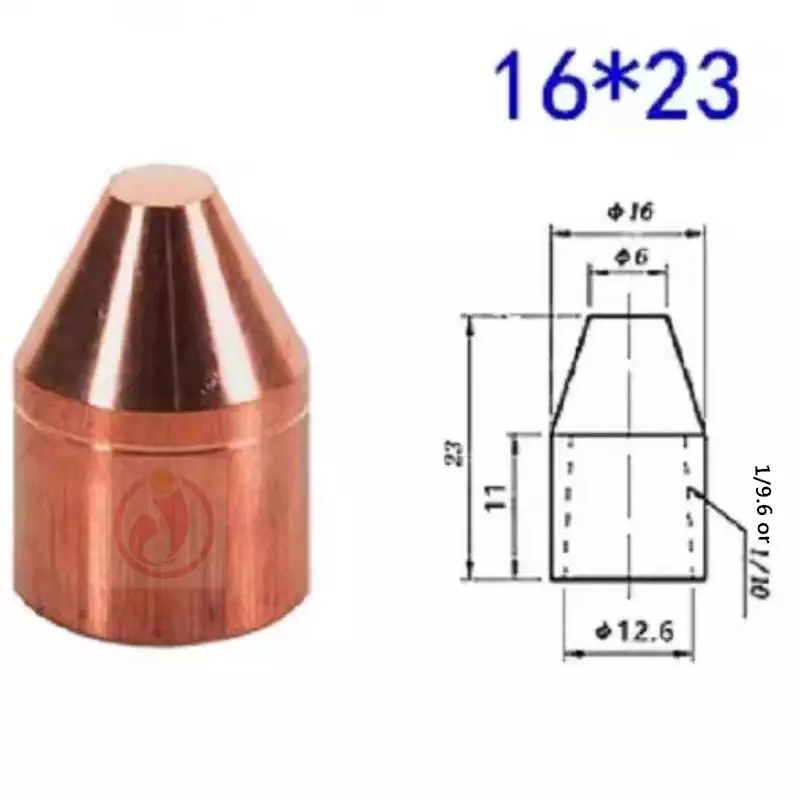

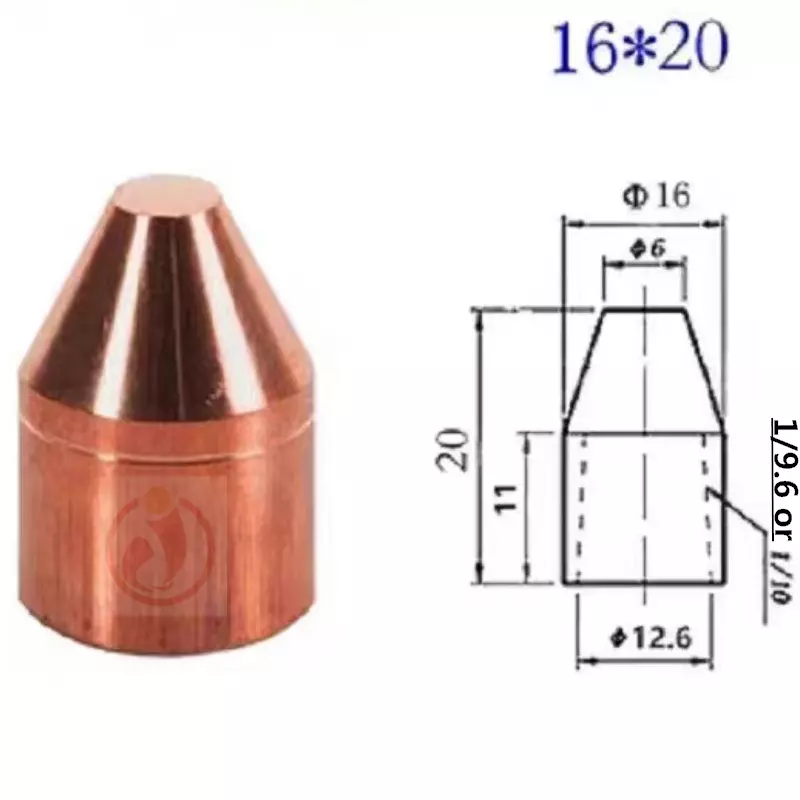

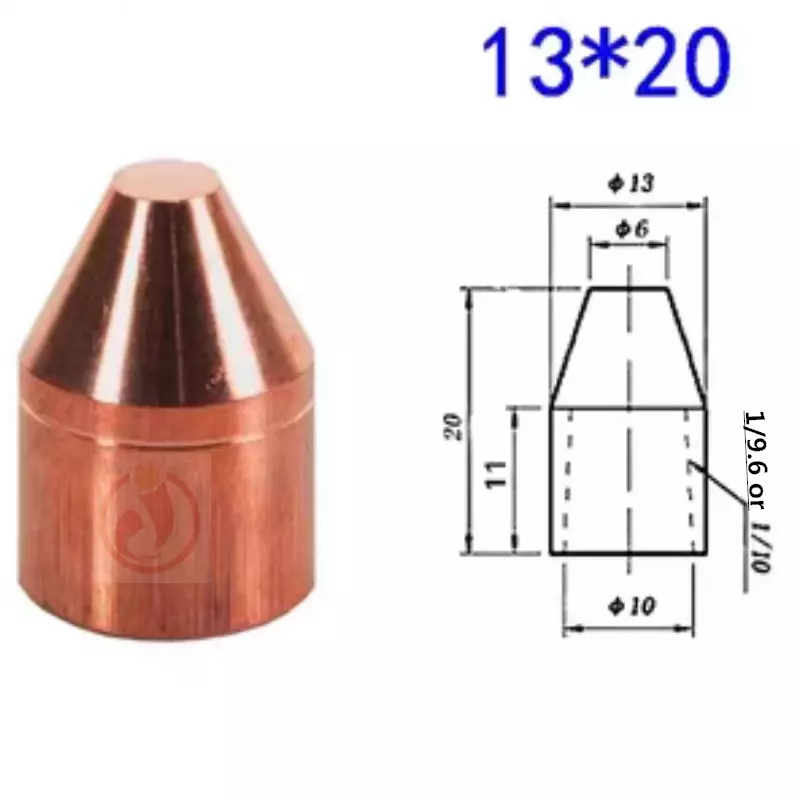

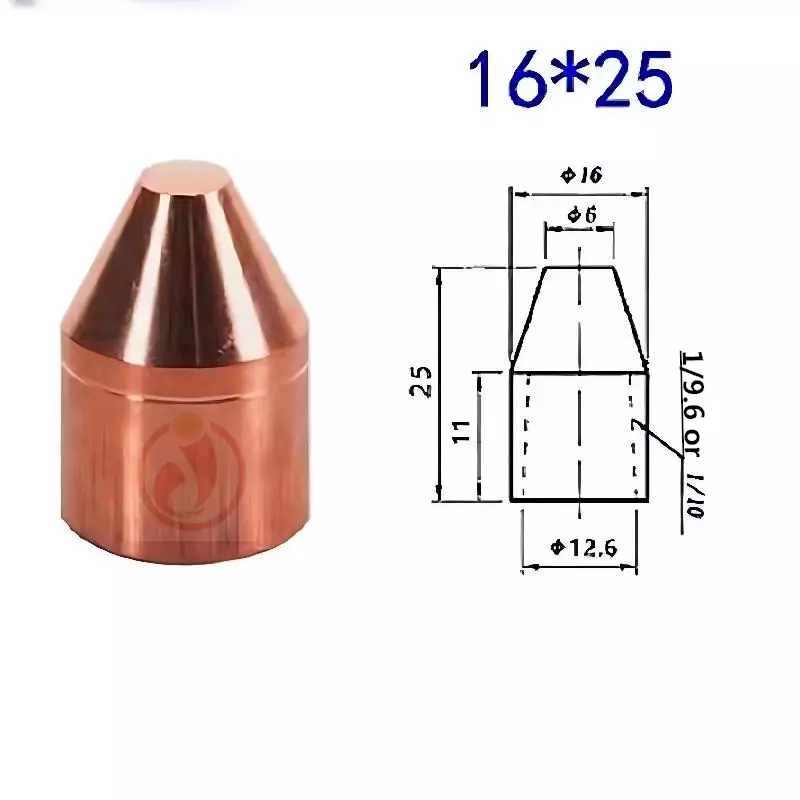

Adopting high-precision CNC machining and strict quality control system, all dimensions of the Pointed Electrode Cap meet international standards (GB, DIN, ISO, ANSI) and can be perfectly matched with standard resistance welding equipment, including fixed spot welders, suspended spot welders and robotic spot welders superscript:1 superscript:2. Standard models cover common specifications such as 13×20, 16×23 (outer diameter × length), with inner diameter ranging from 10~20mm, overall length from 15~30mm, point angle from 30°~90° and tip diameter from 0.5~3mm, fully adapting to different welding equipment and workpiece requirements. The strict tolerance control ensures high dimensional consistency, avoiding loose connection or misalignment during installation, and guaranteeing consistent welding quality. The electrode cap’s design is also compatible with various welding workpieces, including steel plates, galvanized plates, aluminum alloys, thin sheets and precision electronic components, making it a versatile accessory for multiple industrial scenarios, especially for workpieces with small welding points and strict positioning requirements.
4. Strong Customization Capability for Diversified Needs
We support full non-standard customization according to customer-provided drawings, samples and actual welding working conditions. Whether it is the size specifications (inner diameter, outer diameter, overall length, point angle, tip diameter), material selection (chromium zirconium copper, dispersion copper, alumina copper, tungsten-copper alloy), inner taper design (non-standard tapers), or surface treatment (silver plating, nickel plating), our professional R&D and machining team can provide targeted solutions. We can also customize the electrode cap according to the specific model of welding equipment, workpiece material (galvanized plates, high-strength steels, thin sheets) and welding precision requirements, meeting the diversified and personalized needs of different industries. For special welding scenarios such as precision electronic component welding or high-temperature welding, we can optimize the material and structural design to ensure stable performance and long service life, including adjusting the point angle and tip diameter to adapt to specific small welding point requirements.
5. Durable and Wear-Resistant, High Cost-Effectiveness
The combination of premium copper alloy materials and advanced cold-forming manufacturing process greatly enhances the wear resistance, high-temperature oxidation resistance and impact resistance of the Pointed Electrode Cap. The high hardness (HRC 75-85 for CrZrCu) and wear-resistant surface ensure that the electrode cap can withstand long-term high-frequency welding operations without wear or deformation, extending the replacement cycle (typically supporting 1000-1200 welding points before regrinding or replacement) superscript:1. The optimized pointed tip design enhances structural strength, avoiding fracture or deformation caused by concentrated stress and high temperature during welding — a common problem of ordinary pointed electrode caps. Compared with ordinary copper electrode caps, our product has a longer service life (3-5 times that of pure copper electrode caps), reducing production downtime and maintenance costs. The excellent high-temperature resistance and anti-oxidation performance avoid frequent replacement caused by material aging and tip oxidation, further improving cost-effectiveness. Its durable performance also ensures stable welding quality in mass production, reducing the rate of defective products and improving production efficiency, making it a cost-efficient choice for automated welding lines — especially for precision welding scenarios where small welding points and accurate positioning are critical.
Wide Application Scenarios
Our Pointed Electrode Cap is widely used in various resistance welding equipment, highly compatible with mainstream fixed spot welders, suspended spot welders, robotic spot welders and welding jigs at home and abroad superscript:1 superscript:2. As a key welding consumable, it is suitable for multiple industrial fields that require high-efficiency, high-standard resistance welding, especially for workpieces with small welding points, thin materials or strict positioning requirements, and its core application fields include:
-
Automotive manufacturing: Welding of small parts, precision components, thin-sheet joints and electronic components in auto bodies, chassis, engine brackets and interiors. The pointed electrode cap’s precise positioning capability ensures accurate welding of small welding points, avoiding workpiece damage and ensuring product quality. It is widely used in automated welding lines of automotive manufacturers, compatible with robotic welding arms, and suitable for welding of high-strength steels, galvanized plates and thin aluminum alloy auto parts. The durable performance also reduces replacement frequency, adapting to the high-speed production needs of the automotive industry.
-
Home appliance industry: Welding of small-size metal components, thin sheets and precision parts for refrigerators, washing machines, air conditioners and other home appliances (such as internal connectors, thin-sheet brackets). The pointed design concentrates current on small welding points, ensures neat welding seams, eliminates the need for subsequent polishing, improves production efficiency and reduces costs. It is suitable for large-batch production lines of home appliances, with excellent compatibility with automatic welding equipment, ensuring consistent welding quality and product appearance.
-
Hardware & sheet metal fabrication: Precision welding of small welding points, thin sheets, special-shaped joints and small hardware components. The pointed electrode cap’s wear resistance, precise positioning and stable performance adapt to the harsh working environment of hardware processing, resisting the erosion of dust and welding spatter. It is suitable for welding of steel plates, galvanized plates, thin sheets and other materials, ensuring firm bonding and high product reliability — especially for small workpieces and thin-sheet welding scenarios.
-
General industrial manufacturing: High-standard resistance welding in scenarios such as electronic equipment, precision instruments, heavy machinery and railway accessories, especially for welding of small parts, thin sheets, precision components and tiny joints. The Pointed Electrode Cap provides stable and reliable welding support, ensuring welding quality and production efficiency, especially for high-frequency, large-batch and precision welding operations and workpieces that require accurate positioning of small welding points. It is also applicable to high-temperature welding scenarios, expanding the application scope, and can be used in precision welding scenarios where traditional flat electrode caps cannot achieve concentrated current and precise positioning.
Why Choose Jiahe Pointed Electrode Cap?
With more than 10 years of deep cultivation in the field of automated welding equipment and accessories, Guangzhou Jiahe is a national high-tech enterprise with a complete R&D, production and quality control system. Our Pointed Electrode Cap inherits Jiahe's consistent quality concept, integrating professional design, premium materials and advanced technology. It is widely recognized by domestic and foreign customers for its reliable performance, precise dimensions, long service life and strong customization capability, establishing a good brand reputation in the global welding industry. We strictly control every link from raw material selection to production and inspection, ensuring that each electrode cap meets international standards (GB, DIN, ISO, ANSI) and customer requirements, especially for the precise processing of the pointed tip and contact surface which are the core of the product. Our material selection fully considers the characteristics of different welding workpieces and environments, providing targeted solutions for galvanized plate, high-strength steel and thin-sheet welding needs, and optimizing for the unique advantages of pointed electrodes in precision, small-point welding scenarios.
We provide one-stop after-sales service and technical support, responding quickly to customer needs such as product consultation, customization scheme design, installation guidance and after-sales maintenance. We are committed to becoming a reliable partner in the field of automatic welding, providing customers with cost-effective Pointed Electrode Cap solutions and boosting the stability and efficiency of automated production lines, whether for standard welding scenarios or special customization needs (such as material optimization or point angle adjustment).
