Electrode Tip | High-Precision Welding Contact Component for Resistance Welding
Product Overview
Guangzhou Jiahe Automation Equipment Co., Ltd. Electrode Tip is a core contact component exclusively designed for resistance welding systems, serving as the direct contact point between the welding electrode and the workpiece. As an indispensable consumable and functional part in automated welding lines, it integrates precision contact design, high-performance conductive materials and advanced machining technology, mainly used to transmit welding current, concentrate heat at the welding point, and ensure firm bonding between workpieces. Our Electrode Tip effectively solves common pain points in long-term welding operations, such as poor contact, uneven current distribution, rapid wear, welding spatter adhesion, and unstable welding quality — issues that directly affect the qualification rate of welded products and production efficiency. Available in various types (flat, pointed, rounded, concave) and specifications to adapt to different workpiece materials, welding processes and electrode models, it is perfectly compatible with mainstream resistance welding equipment (fixed spot welders, suspended spot welders, robotic spot welders, automatic nut welding machines) and common electrode shanks (M3-M12), widely applied in automotive manufacturing, hardware processing, sheet metal fabrication, precision machinery and other industries requiring high-efficiency, high-standard resistance welding, especially suitable for large-batch automated production lines. As a key consumable in resistance welding, the quality of the electrode tip directly determines the stability of the welding process and the quality of the weld seam, making it a crucial part of ensuring efficient and high-quality welding operations.
Engineered with a precision-machined contact surface and standard matching structure, our Electrode Tip ensures tight connection with electrode shanks and stable contact with workpieces, avoiding poor contact or current loss during high-frequency welding vibration and high-pressure operation. The tip body adopts an integrated design to enhance structural strength, preventing fracture, deformation or detachment under high-temperature welding conditions and high-pressure clamping. With excellent electrical conductivity and heat dissipation performance, it can quickly and stably transmit large currents to the welding contact point, concentrate heat to form a uniform weld nucleus, and rapidly dissipate excess heat to avoid overheating damage. Each Electrode Tip undergoes strict quality inspection before leaving the factory, including dimensional accuracy testing, conductivity detection, wear resistance verification and surface defect inspection, ensuring reliable operation in harsh welding environments (high temperature, high pressure, welding spatter) and consistent welding quality batch after batch.
Premium Material & Advanced Manufacturing Process
Adhering to the production principle of "Materials as the foundation, technology as the core, and quality as the life", we select high-performance conductive and wear-resistant materials for our Electrode Tip, mainly including chromium zirconium copper (CrZrCu, CuCrZr), beryllium copper (BeCu),弥散 copper (Dispersion Strengthened Copper), and optional tungsten-copper alloy (W-Cu) for special high-temperature scenarios superscript:1 superscript:5 superscript:6. Chromium zirconium copper is the preferred material for most welding scenarios, as it combines excellent electrical conductivity (≥85% IACS), high-temperature softening resistance (continuous use temperature up to 500℃), and good wear resistance — adding trace amounts of chromium and zirconium to pure copper significantly improves its hardness and structural stability while retaining superior conductive performance superscript:5 superscript:6. Beryllium copper is used for high-strength and high-frequency welding scenarios, featuring higher hardness (HRB 95~104) and high-temperature resistance (softening temperature up to 650℃), suitable for electrode tips that bear large pressure and frequent welding operations. Dispersion copper is specially designed for galvanized plate welding, as it can effectively avoid chemical reactions between chromium and zinc in galvanized plates, preventing electrode sticking and ensuring welding quality superscript:5 superscript:6. Tungsten-copper alloy, with its high melting point (up to 3422℃ for tungsten) and excellent high-temperature stability, is used for special high-heat welding scenarios such as laser welding and high-current resistance welding, avoiding tip melting and deformation superscript:1 superscript:2. All raw materials undergo strict incoming inspection, including material composition testing, conductivity verification and mechanical performance detection, to ensure stable performance and lay a solid foundation for long-term reliable operation.
Our Electrode Tip adopts an integrated manufacturing process of cold extrusion forming, high-precision CNC machining, professional heat treatment and fine surface polishing. The advanced cold extrusion technology retains the original hardness and structural integrity of the material, ensuring the tip’s resistance to impact, deformation and wear under high-pressure clamping and high-temperature welding conditions. The contact surface of the tip is precision-machined according to different welding needs (flat, pointed, rounded, concave), with a high finish (Ra≤0.1μm) to ensure tight contact with workpieces, avoid current loss caused by poor contact, and reduce welding spatter adhesion. The tip body is processed with strict tolerance control (±0.005~±0.01mm), covering key dimensions such as tip diameter (1~10mm for standard models), overall length (5~30mm), and matching taper (1/9.6) to ensure perfect compatibility with electrode shanks. Professional heat treatment (quenching and tempering) is adopted to further improve the material’s hardness and toughness, enhancing wear resistance and service life — the service life of our electrode tip is 3-5 times that of ordinary cast or machined products. Every finished product undergoes comprehensive quality inspection, including dimensional accuracy testing, conductivity detection, wear resistance verification and surface defect inspection, to ensure zero defects before delivery. Advanced surface anti-oxidation and anti-sticking treatment is also applied to prevent rust, corrosion and welding spatter adhesion, extending service life in harsh welding environments with dust and high temperature.
Core Product Advantages
1. Stable Current Transmission & Concentrated Heat
Made of high-performance conductive materials (CrZrCu, BeCu, Dispersion Strengthened Copper, W-Cu), our Electrode Tip features superior electrical conductivity and thermal conductivity, which can quickly and stably transmit large currents to the welding contact point without obvious current loss. The optimized contact surface design (flat, pointed, rounded, concave) ensures that current is concentrated at the welding point, forming a uniform and stable weld nucleus, which is crucial for maintaining consistent welding quality. The excellent heat dissipation performance allows rapid dissipation of excess heat generated during welding, preventing the tip from softening, deforming or melting due to long-term high-temperature operation — chromium zirconium copper tips maintain stable conductivity and structural strength even at 500℃, while tungsten-copper alloy tips can withstand ultra-high temperatures up to 2000℃ without deformation superscript:1 superscript:2. This stable performance ensures uniform welding arcs and neat weld seams, greatly improving the qualification rate of welded products and reducing the defect rate caused by uneven current distribution.
2. High Wear Resistance & Long Service Life
The combination of premium alloy materials and advanced cold extrusion manufacturing process enhances the overall wear resistance, high-temperature oxidation resistance and impact resistance of the Electrode Tip. The high-hardness material (HRC 75-85 for CrZrCu, HRB 95~104 for BeCu) provides excellent wear resistance, reducing wear caused by frequent contact with workpieces and high-pressure clamping. The surface anti-sticking treatment prevents welding spatter from adhering to the tip, avoiding tip blockage and reducing the frequency of cleaning and replacement. Compared with ordinary electrode tips, our product has 3-5 times longer service life — under normal welding conditions, a single electrode tip can complete 1000-1200 welding points before needing修磨 or replacement, reducing production downtime and maintenance costs superscript:5 superscript:6. The tungsten-copper alloy option further extends service life in high-temperature scenarios, while the dispersion copper option avoids sticking and wear when welding galvanized plates, ensuring long-term stable operation.
3. Precise Positioning & Wide Compatibility
Adopting high-precision CNC machining and strict quality control, all dimensions of the Electrode Tip meet international standards (GB, DIN, ISO, ANSI) and perfectly match mainstream resistance welding equipment, including fixed spot welders, suspended spot welders, robotic spot welders and automatic nut welding machines. The standard 1/9.6 taper ensures universal compatibility with most electrode shanks and electrode caps (P, D, E, F types), while the precise tip diameter and contact surface size ensure accurate positioning of the welding point, avoiding welding deviation caused by misalignment. Standard models cover common specifications such as tip diameter 1~10mm and overall length 5~30mm, compatible with various workpiece materials (steel plates, galvanized plates, high-strength steels, aluminum alloys) and welding processes (spot welding, projection welding, nut welding). The high dimensional consistency ensures easy installation and replacement, adapting to high-speed automated welding production lines and reducing the time cost of equipment adjustment.
4. Diverse Types & Strong Customization Capability

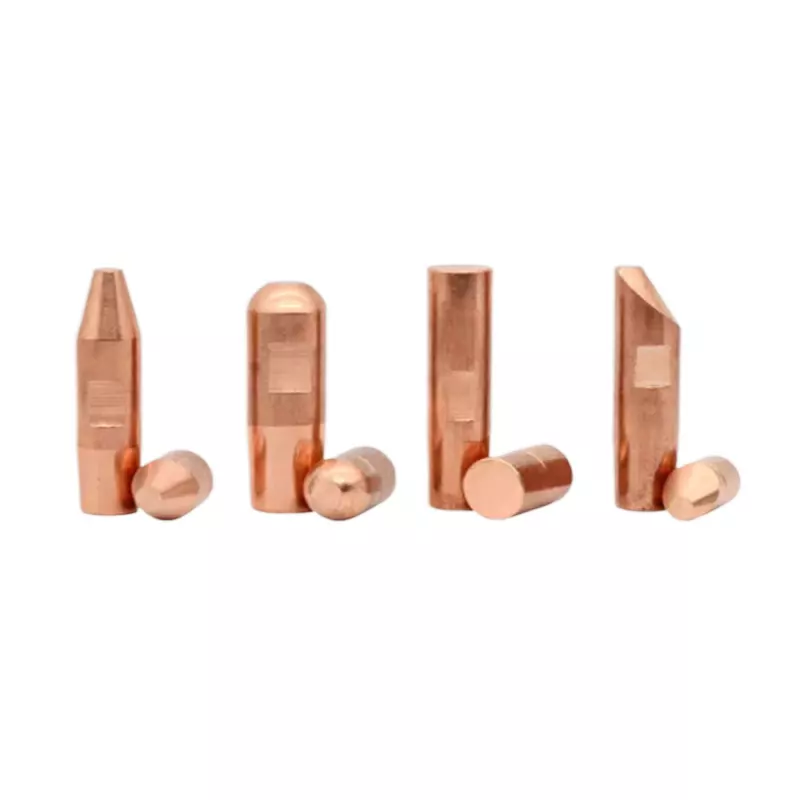

We offer a full range of Electrode Tip types to meet different welding needs: flat type for large-area contact welding, pointed type for precise positioning welding, rounded type for reducing workpiece damage, and concave type for nut welding and irregular workpiece welding. We support full non-standard customization according to customer-provided drawings, samples and actual welding conditions. Customizable options include size specifications (tip diameter, overall length, taper accuracy), material selection (CrZrCu, BeCu, Dispersion Strengthened Copper, W-Cu), tip type (flat, pointed, rounded, concave), contact surface size, and surface treatment (anti-sticking, silver plating for enhanced conductivity). We can customize the electrode tip according to specific workpiece materials (such as aluminum alloys, copper alloys), welding equipment and operation scenarios — for example, customized pointed tips for precision electronic component welding, or concave tips for M5-M12 nut welding. For special high-temperature welding scenarios such as laser welding, we can also provide tungsten-copper alloy tips with enhanced high-temperature resistance, meeting diversified and personalized needs of different industries.
5. Easy Installation & Cost-Effective
Our Electrode Tip is designed with user-friendliness in mind, featuring a simple and practical matching structure that allows quick installation and disassembly with common tools, reducing replacement time and improving production efficiency. The high wear resistance and long service life reduce the frequency of tip replacement, lowering maintenance costs and production downtime — compared with ordinary electrode tips, our product can save 50% or more on replacement costs in long-term use. The stable performance ensures consistent welding quality, reducing defective product rates and further improving production efficiency. Compared with imported electrode tips, our product offers equivalent or superior performance at a more competitive price, achieving high cost-effectiveness for global customers. The universal compatibility also reduces the need for storing multiple types of tips, simplifying inventory management and reducing costs.
Wide Application Scenarios
Our Electrode Tip is widely used in various resistance welding equipment, highly compatible with mainstream fixed spot welders, suspended spot welders, robotic spot welders, automatic nut welding machines and welding jigs at home and abroad. As a core contact component, it is suitable for multiple industrial fields requiring high-efficiency, high-standard resistance welding, especially large-batch automated production lines. Core application fields include:
-
Automotive manufacturing: Used in the welding of auto body components, chassis, engine brackets, interior parts and other components, matching robotic welding arms and automatic nut welding machines. It is suitable for spot welding, projection welding and nut welding of automotive parts, ensuring stable current transmission and precise positioning — flat tips are used for large-area body welding, pointed tips for precision component welding, and concave tips for nut welding. The dispersion copper option is especially suitable for welding galvanized automotive parts, avoiding electrode sticking and ensuring welding quality, adapting to the high-speed production needs of the automotive industry.
-
Hardware & fastener industry: Used in the precision welding of hardware tools, mechanical parts and fasteners, such as spot welding of bolts, nuts and sheet metal parts. The pointed and rounded tips can avoid damage to small workpieces, while the high wear resistance adapts to the harsh working environment of hardware processing, resisting dust and welding spatter. It is compatible with M3-M12 electrode specifications, meeting the welding needs of different size nuts and fasteners, and improving welding efficiency and product reliability.
-
Sheet metal fabrication: Used in the welding of sheet metal components, cabinets and brackets, especially for precision welding of thin sheet metal. The flat and rounded tips ensure uniform contact with the sheet metal surface, avoiding workpiece deformation and ensuring neat weld seams. The precise positioning capability prevents welding deviation, improving the quality of sheet metal products. For narrow operation spaces, customized small-diameter pointed tips can be used to achieve precise welding of edge positions.
-
General industrial manufacturing: Used in high-standard resistance welding in electrical equipment, precision instruments, heavy machinery and railway accessories. The tungsten-copper alloy tips are suitable for high-temperature welding scenarios such as laser welding and high-current resistance welding, ensuring stable performance and long service life. It can be customized to match non-standard welding equipment and special workpiece materials (such as aluminum alloys, copper alloys), expanding application scope to various industrial scenarios. In semiconductor manufacturing and MEMS fields, our precision pointed electrode tips are also used for precise welding and connection of electronic components, leveraging their high precision and stable conductivity superscript:1.
Why Choose Jiahe Electrode Tip?
With more than 10 years of deep cultivation in the field of automated welding equipment and accessories, Guangzhou Jiahe is a national high-tech enterprise with a complete R&D, production and quality control system. Our Electrode Tip inherits Jiahe's consistent quality concept, integrating professional design, premium materials and advanced technology. It is widely recognized by domestic and foreign customers for its reliable performance, precise dimensions, long service life and strong customization capability, establishing a good brand reputation in the global welding industry. We strictly control every link from raw material selection to production and inspection, ensuring each electrode tip meets international standards and customer requirements — we select materials according to specific welding scenarios, such as dispersion copper for galvanized plates and tungsten-copper alloy for high-temperature welding, and adopt high-precision machining to ensure the quality of the contact surface, which is the core of the product.
We provide one-stop after-sales service and technical support, responding quickly to customer needs such as product consultation, customization scheme design, installation guidance and after-sales maintenance. We are committed to becoming a reliable partner in the field of automatic welding, providing cost-effective Electrode Tip solutions and boosting the stability and efficiency of automated production lines, whether for standard scenarios or special customization needs.
