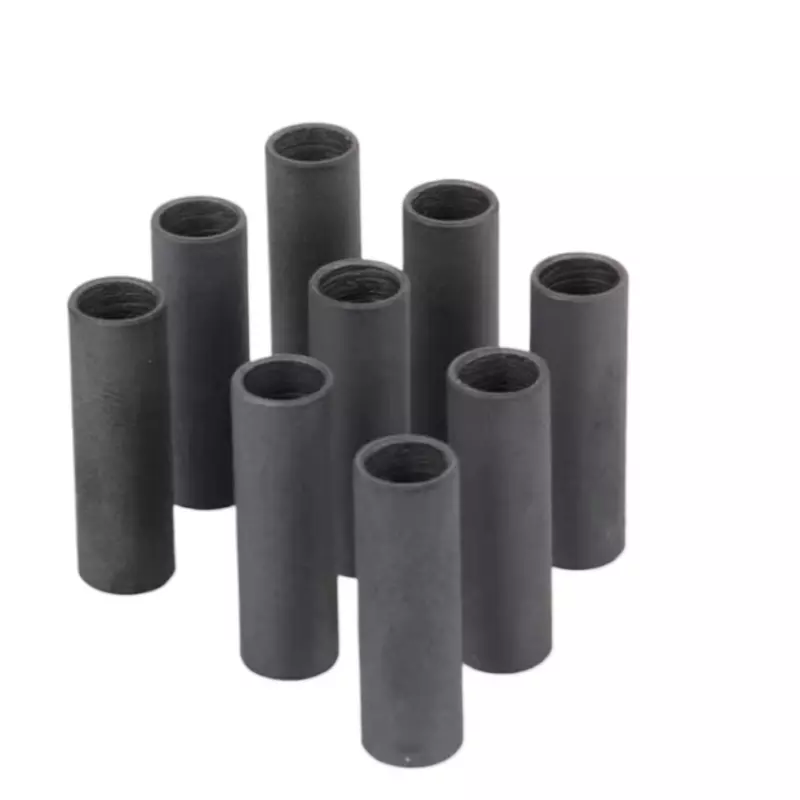

Insulating Sleeve | High-Temperature Resistant Welding Insulation Accessory
Product Overview
Guangzhou Jiahe Automation Equipment Co., Ltd. Insulating Sleeve is a professional high-precision insulation accessory specially developed for automated welding equipment, designed to solve the common pain points of electric leakage, short circuit, equipment damage and potential safety hazards caused by poor insulation of welding electrodes, electrode rods and connecting parts in high-temperature, high-voltage welding scenarios. As a core product in our welding insulation accessory series, this insulating sleeve integrates high-performance insulation materials, precision molding technology and targeted structural design, providing reliable insulation protection for welding components, effectively isolating current, preventing electric arc leakage and short circuit between metal parts, and ensuring the safe and stable operation of welding equipment and operators. It is widely applicable to various resistance welding equipment such as fixed spot welders, suspended spot welders, robotic spot welders and projection welders, serving as a key safety accessory that directly affects the safety of welding operations and the service life of equipment. Compared with ordinary insulating sleeves, our product features superior high-temperature resistance, excellent insulation performance, strong wear resistance and tight fitting, which can adapt to harsh welding environments and long-term high-frequency operation, and is especially suitable for high-volume, high-standard automated welding scenarios that require strict insulation protection.
Tailored for the insulation needs of welding equipment components, our insulating sleeve adopts a precision-molded integral structure, which perfectly fits the specifications of mainstream welding electrodes, electrode rods, electrode caps and connecting parts (such as M8, M10, M12 threads and φ8~φ20mm diameters). It is made of high-performance insulation materials with excellent electrical insulation, high-temperature resistance and corrosion resistance, which can maintain stable insulation performance even under high-temperature welding conditions (continuous use temperature up to 200℃, instantaneous high-temperature resistance up to 300℃). It effectively prevents electric leakage caused by insulation aging, cracks or damage, avoids short circuit between electrode components and equipment casings, and eliminates potential safety hazards such as equipment failure and operator electric shock. The sleeve is easy to install and disassemble, with good elasticity and toughness, not easy to break or deform during assembly and use, and can closely wrap the surface of the protected components to prevent dust, welding spatter and chemical substances from eroding the components, extending the service life of welding parts. It is widely used in automotive manufacturing, hardware processing, sheet metal fabrication, precision machinery, electrical equipment and other industrial fields, especially suitable for production lines with strict requirements on operational safety and equipment stability.
Premium Material & Advanced Manufacturing Process
Adhering to the production principle of "Materials as the foundation, technology as the core, and quality as the life", we select high-performance professional insulation materials for our Insulating Sleeve, mainly including high-temperature resistant silicone rubber, heat-shrinkable polymer materials, flame-retardant PVC and optional high-purity ceramic fiber for special high-temperature scenarios — materials highly recommended for high-temperature, high-voltage welding insulation operations, especially suitable for insulation protection of welding components in harsh environments such as high heat, welding spatter and chemical corrosion. All raw materials undergo strict incoming inspection, including insulation performance testing, high-temperature resistance verification, flame-retardant performance detection and mechanical strength test, to ensure excellent electrical insulation (insulation resistance >1.0×10¹⁴Ω), strong high-temperature resistance (continuous use temperature -30℃~200℃, instantaneous high-temperature resistance up to 300℃) and good flame-retardant performance (UL94 V-0 grade), laying a solid foundation for the sleeve's long-term stable insulation protection. For high-temperature welding scenarios such as submerged arc welding and high-frequency resistance welding, the optional ceramic fiber material can withstand instantaneous high temperatures up to 800℃, effectively solving the problem of insulation failure caused by high heat. For scenarios involving chemical corrosion, the selected materials also have good anti-chemical corrosion performance, resisting the erosion of common industrial chemicals and ensuring long-term insulation stability.
Our Insulating Sleeve adopts an integrated manufacturing process of precision injection molding, high-temperature vulcanization, precision cutting and surface polishing. We adopt advanced precision molding technology to ensure that the inner diameter, outer diameter and length of the sleeve are accurately matched with the specifications of welding components, with tight fitting and no looseness, avoiding insulation gaps caused by poor fitting. The high-temperature vulcanization process enhances the material's toughness, elasticity and high-temperature resistance, making the sleeve not easy to age, crack or deform under long-term high-temperature operation and frequent assembly and disassembly. The inner surface of the sleeve is designed with anti-slip texture, which can closely attach to the surface of the protected component, preventing slipping during welding operation and ensuring stable insulation protection. The outer surface is polished to a smooth finish, which is easy to clean and can effectively prevent the adhesion of welding spatter and dust. Strict tolerance control (±0.01~±0.02mm) is implemented throughout the production process, and every finished product undergoes comprehensive quality inspection, including insulation resistance testing, high-temperature resistance verification, flame-retardant performance test, dimensional accuracy detection and surface defect inspection, to ensure zero defects before delivery. Standard models are available in common specifications (inner diameter φ8~φ20mm, length 15~50mm) and can be customized according to the size of welding components and actual working conditions, compatible with mainstream welding equipment at home and abroad. For special-shaped welding components, we can also adopt customized molding technology to ensure perfect fitting and reliable insulation protection.
Core Product Advantages
1. Superior Insulation Performance, Safe and Reliable
The insulating sleeve is made of high-performance insulation materials, with excellent electrical insulation performance (insulation resistance >1.0×10¹⁴Ω) and stable insulation effect, which can effectively isolate current, prevent electric arc leakage and short circuit between welding components and equipment, and fundamentally eliminate potential safety hazards such as operator electric shock and equipment damage caused by poor insulation. It has passed strict insulation performance testing, withstanding工频耐压 ≥18kV for 1 minute without breakdown, ensuring safe operation in high-voltage welding scenarios. The integral insulation structure covers the entire protected area of the component, avoiding insulation gaps and ensuring comprehensive and reliable insulation protection. This design is particularly suitable for automated welding lines, where the safety of equipment and operators is crucial, and effectively solves the problem of insulation failure caused by material aging, wear or external damage in traditional insulating sleeves. The flame-retardant performance (UL94 V-0 grade) also prevents the sleeve from catching fire in case of accidental electric arc, further improving operational safety.
2. Excellent High-Temperature Resistance, Adapt to Harsh Environments
Adopting high-temperature resistant materials and advanced high-temperature vulcanization technology, our insulating sleeve has excellent high-temperature stability, which can maintain stable insulation performance and structural integrity in continuous high-temperature environments (up to 200℃) and resist instantaneous high temperatures up to 300℃. For special high-temperature welding scenarios such as submerged arc welding and high-frequency resistance welding, the optional ceramic fiber material can withstand instantaneous high temperatures up to 800℃, effectively avoiding insulation failure, deformation or melting caused by high heat generated during welding. The material also has good low-temperature resistance, which can maintain good flexibility and insulation performance in low-temperature environments (-30℃), adapting to different regional and working environment requirements. It can effectively resist the erosion of welding spatter and high-temperature radiation, not easy to age, crack or brittle, ensuring long-term stable operation in harsh welding environments, which is far superior to ordinary plastic insulating sleeves. This high-temperature resistance also ensures that the sleeve can be used in conjunction with high-temperature welding consumables, such as electrode caps that need to withstand high temperatures during welding.
3. Precision Fit, Easy Installation and Disassembly
Adopting high-precision molding and cutting technology, all dimensions of the insulating sleeve (inner diameter, outer diameter, length and wall thickness) meet international standards (GB, DIN, ISO, ANSI) and can be perfectly matched with standard welding electrodes, electrode rods, electrode caps and connecting parts (such as M8, M10, M12 threads and φ8~φ20mm diameters). The sleeve has good elasticity and toughness, which can be easily installed by direct nesting, and closely wraps the surface of the component without looseness, avoiding slipping during welding operation. The smooth inner surface and reasonable wall thickness design ensure that the installation does not affect the normal assembly and operation of the welding components, and the disassembly is convenient, which can be quickly replaced when worn or damaged, reducing maintenance time and improving production efficiency. High dimensional consistency ensures that the sleeve can be seamlessly integrated with automated welding equipment, fully adapting to high-speed automated welding production lines. The anti-slip inner texture further enhances the fitting stability, ensuring that the sleeve does not shift even under high-frequency welding vibration, which is essential for maintaining stable insulation protection.
4. Strong Customization Capability for Diversified Needs
We support full non-standard customization according to customer-provided drawings, samples and actual welding working conditions. Whether it is the size specifications (inner diameter φ5~φ30mm, length 10~100mm, wall thickness 0.5~3mm), material selection (silicone rubber, heat-shrinkable material, flame-retardant PVC, ceramic fiber), color (standard black, optional red, blue, yellow for easy identification) or special structural design (such as anti-slip texture, heat dissipation grooves, waterproof structure), our professional R&D and manufacturing team can provide targeted solutions. We can also customize the sleeve according to the specific model of welding equipment (fixed spot welder, suspended spot welder, robotic spot welder), the size of welding components and the working environment (high temperature, chemical corrosion, narrow space), meeting the diversified and personalized insulation needs of different industries. For special-shaped welding components or narrow operation spaces, we can design special-shaped sleeves to ensure perfect fitting and reliable insulation protection, and also add waterproof and dustproof structures according to needs to adapt to harsh working environments such as humid and dusty workshops.
5. Durable and Wear-Resistant, High Cost-Effectiveness
The combination of premium insulation materials and advanced manufacturing process greatly enhances the wear resistance, tear resistance and corrosion resistance of the insulating sleeve. The material has good mechanical strength, not easy to break, tear or deform during assembly, disassembly and long-term use, and can effectively resist the erosion of welding spatter, dust and chemical substances, extending the service life of the sleeve. Compared with ordinary insulating sleeves, our product has a longer service life (3-5 times that of ordinary plastic sleeves), which reduces the frequency of replacement, reduces production downtime and maintenance costs, and lowers the overall production cost for customers, achieving high cost-effectiveness. The excellent aging resistance ensures that the sleeve can maintain stable insulation performance and structural integrity for a long time, avoiding frequent replacement caused by insulation aging, and further improving the cost-effectiveness. The flame-retardant and anti-chemical corrosion performance also reduces the loss caused by accidental damage, making it more suitable for high-volume automated production lines that require long-term stable operation.
Wide Application Scenarios
Our Insulating Sleeve is widely used in various automated resistance welding equipment, highly compatible with mainstream spot welders, projection welders, seam welders and robotic welding equipment at home and abroad, serving as a key safety insulation accessory for welding operations. Its core application fields include:
-
Automotive manufacturing: Used for insulation protection of welding electrodes, electrode rods, electrode caps and connecting parts in automated welding lines of auto body components, chassis, engine brackets and interior parts, ensuring safe and stable operation of welding robots and equipment, and avoiding safety hazards caused by electric leakage. It is also applicable to insulation protection of welding components in high-temperature welding scenarios such as automotive component projection welding, and perfectly matches the assembly needs of automated welding robots, adapting to the high-efficiency and high-safety production needs of the automotive industry. The sleeve can effectively protect welding components from welding spatter and high-temperature radiation, extending the service life of electrode caps and other consumables.
-
Hardware & fastener industry: Precision insulation protection of welding components in the welding process of hardware tools, mechanical parts and fasteners, preventing electric leakage and short circuit, ensuring the safety of operators and the stability of welding quality. It is suitable for insulation protection of welding components in batch production lines, reducing the frequency of sleeve replacement and improving production efficiency. The flame-retardant and wear-resistant performance also ensures stable operation in harsh working environments, and the optional color customization helps distinguish different types of welding components, improving operation efficiency.
-
Sheet metal fabrication: Used for insulation protection of welding electrodes and connecting parts in the welding of sheet metal components, cabinets and brackets, adapting to the high-temperature environment of sheet metal welding, and avoiding insulation failure caused by welding spatter and high heat. For narrow operation spaces, the flexible and compact design of the sleeve can better adapt to the working environment, and the easy installation and disassembly feature facilitates quick maintenance and replacement. The sleeve also prevents dust and welding spatter from eroding welding components, ensuring the service life of the equipment and the stability of welding quality.
-
General industrial manufacturing: High-standard insulation protection in high-volume, high-voltage welding scenarios, such as electrical equipment, construction machinery, instrumentation, railway accessories and shipbuilding interior parts, ensuring stable insulation performance and operational safety, especially for workpieces with strict safety requirements. It is also applicable to insulation protection of welding components in high-temperature and chemical corrosion environments, expanding the application scope. The sleeve is also suitable for insulation protection in nuclear power-related welding operations that require strict insulation standards, meeting the high safety requirements of special industries.
Why Choose Jiahe Insulating Sleeve?
With more than 10 years of deep cultivation in the field of automated welding equipment and accessories, Guangzhou Jiahe is a national high-tech enterprise with a complete R&D, production and quality control system. Our Insulating Sleeve inherits Jiahe's consistent quality concept, integrating professional insulation design, premium materials and advanced technology. It is widely recognized by domestic and foreign customers for its reliable insulation performance, excellent high-temperature resistance, precise fit and strong customization capability, establishing a good brand reputation in the global welding industry. We strictly control every link from raw material selection to production and inspection, ensuring that each insulating sleeve meets international standards (GB, DIN, ISO, ANSI) and customer requirements, especially for the precise control of insulation performance and high-temperature resistance which are the core of the product. The high-precision molding and premium material selection ensure the sleeve's stability in high-demand welding scenarios, and our material selection fully considers the characteristics of different welding environments, such as high temperature, chemical corrosion and narrow space.
We provide one-stop after-sales service and technical support, responding quickly to customer needs such as product consultation, customization scheme design, installation guidance and after-sales maintenance. We are committed to becoming a reliable partner in the field of automatic welding, providing customers with cost-effective Insulating Sleeve solutions and boosting the safety and efficiency of automated production lines, whether for standard welding scenarios or special high-temperature, high-voltage insulation requirements.
