M10 KCF Round Head Locating Pin | High-Precision Welding Positioning Accessory
Product Overview
Guangzhou Jiahe Automation Equipment Co., Ltd. M10 KCF Round Head Locating Pin is a professional high-precision positioning accessory exclusively developed for automated resistance welding systems, specifically designed to solve common pain points such as workpiece misalignment, positioning deviation, poor welding consistency and low production efficiency in manual feeding, semi-automated and small-batch welding scenarios. As a core product in our welding positioning accessory series, this locating pin integrates advanced KCF material properties, precision machining technology and functional round head design, providing stable, accurate and reliable positioning support for workpieces during welding operations. It is tailor-made for M10 specifications (standard thread M10×1.5 for coarse thread and M10×1.0 for fine thread superscript:2), with a smooth, precision-machined round head structure that is specially optimized for manual workpiece placement superscript:6, making it ideal for precision welding of auto parts, hardware components and sheet metal products that require high positioning accuracy and compatibility with manual feeding operations. Compared with ordinary locating pins made of ceramic or common steel, our M10 KCF round head locating pin features superior toughness, excellent high-temperature resistance, precise dimensional control and long service life, perfectly adapting to harsh welding environments with high heat, welding spatter and frequent positioning operations.

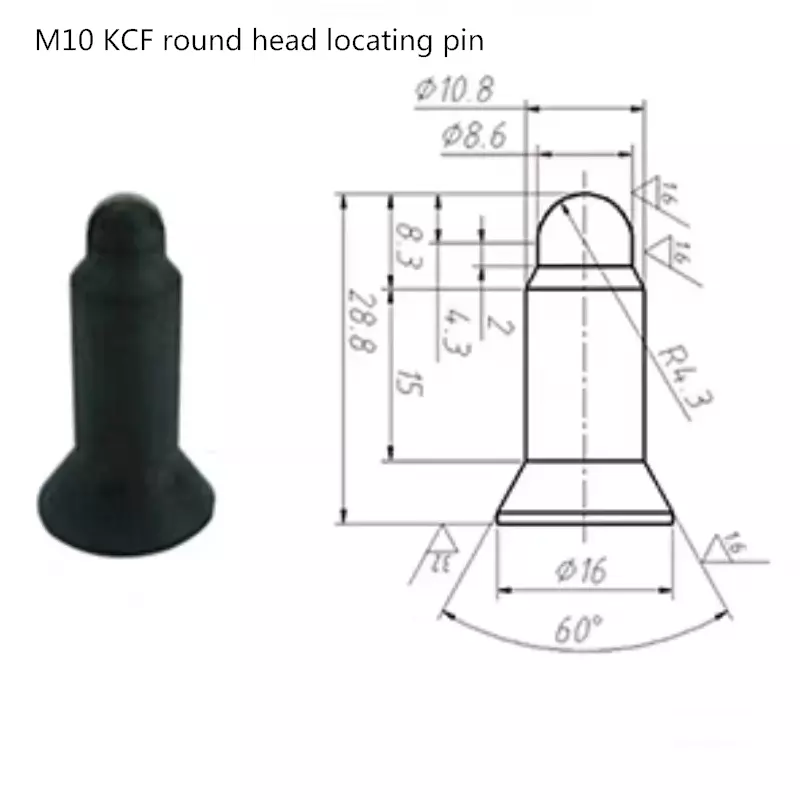

Tailored for the high-precision positioning needs of M10-sized workpieces in welding lines with manual feeding systems, our locating pin adopts a one-piece KCF material structure, with a precision-machined round head (standard round head radius 5mm, compatible with M10 nut inner hole size) and a matching M10 thread design that perfectly fits mainstream welding jigs, fixtures, positioning bases and manual feeding workstations superscript:1 superscript:6. KCF, a special chromium-iron alloy material originally developed by Toshiba Corporation superscript:3, forms a high-quality insulating layer (8-10μ thick) on its surface through special heat treatment (1000-1500℃) superscript:3 superscript:4, enabling it to effectively isolate welding current while maintaining excellent mechanical strength. This unique material advantage makes it an ideal alternative to traditional ceramic locating pins, solving the problem of ceramic pins being brittle and easy to break superscript:3 superscript:6. The round head design ensures smooth, damage-free guiding and positioning of workpieces (especially nuts) during manual placement, preventing scratch or damage to workpiece holes, threads or surfaces, while the precise thread and positioning accuracy ensure that workpieces are fixed in the correct position during welding, avoiding deviation, tilting or displacement. It is widely compatible with various resistance welding equipment such as robotic spot welders, projection welders and fixed spot welders, and is widely used in automotive manufacturing, hardware processing, sheet metal fabrication and precision machinery industries, especially suitable for small-batch, high-standard welding lines with manual feeding that require strict positioning accuracy.
Premium KCF Material & Advanced Manufacturing Process
Adhering to the production principle of "Materials as the foundation, technology as the core, and quality as the life", we select high-quality KCF material (chromium-iron alloy) for our M10 KCF Round Head Locating Pin — a special metal material that combines the advantages of metal toughness and ceramic insulation superscript:3 superscript:6. Different from ordinary steel or ceramic materials, KCF is processed through special heat treatment at 1000-1500℃, forming a dense insulating layer on the surface, which can effectively isolate welding current and prevent arc leakage, while its metal matrix ensures excellent toughness and impact resistance, avoiding brittle fracture common in ceramic locating pins superscript:3 superscript:6. All KCF raw materials undergo strict incoming inspection, including material composition testing, insulation performance verification, high-temperature resistance detection and mechanical strength test, to ensure stable performance (insulation resistance >1.0×10¹²Ω, continuous use temperature up to 400℃, instantaneous high-temperature resistance up to 600℃), laying a solid foundation for the locating pin's long-term stable operation in harsh welding environments. Compared with imported KCF materials, our domestically produced KCF material maintains the same performance while offering higher cost-effectiveness, making it a cost-efficient choice for high-precision positioning needs.
Our M10 KCF Round Head Locating Pin adopts an integrated manufacturing process of precision CNC turning, high-temperature heat treatment, precision grinding and surface polishing. We adopt advanced CNC machining technology to ensure that all dimensions of the locating pin (thread specification, round head size, overall length, positioning accuracy) meet international standards (GB, DIN, ISO, ANSI), with strict tolerance control (±0.003~±0.005mm) to ensure precise matching with M10-sized workpieces, welding fixtures and manual feeding workstations superscript:4. The round head is precision ground to a smooth, burr-free finish (Ra≤0.8μm), ensuring damage-free guiding of workpieces during manual placement and accurate positioning without scratching workpiece holes or threads. The high-temperature heat treatment process enhances the material's hardness (HRC 45-50) and wear resistance, making the locating pin not easy to wear, deform or corrode under long-term high-frequency positioning and high-temperature welding conditions. The thread part is processed according to standard M10 specifications (M10×1.5 coarse thread and M10×1.0 fine thread superscript:2), with precise tooth pitch and smooth surface, ensuring firm installation and no loosening during operation. Every finished product undergoes comprehensive quality inspection, including dimensional accuracy testing, insulation performance detection, wear resistance verification and surface defect inspection, to ensure zero defects before delivery. Standard models are available in common lengths (18~45mm) and can be customized according to customer needs, compatible with mainstream welding jigs, fixtures and manual feeding workstations at home and abroad, and perfectly matching the standard hole diameter of 11mm for M10 nuts.
Core Product Advantages
1. Premium KCF Material, Superior Performance
Made of high-quality KCF chromium-iron alloy, the M10 KCF Round Head Locating Pin combines the advantages of metal toughness and ceramic insulation. The special heat treatment process forms a dense 8-10μ thick insulating layer on the surface superscript:3 superscript:4, which can effectively isolate welding current, prevent arc leakage and short circuit, and avoid damage to workpieces or equipment caused by current conduction. Compared with traditional ceramic locating pins, KCF material has better toughness and impact resistance, effectively solving the problem of ceramic pins being brittle and easy to break, greatly extending the service life of the locating pin superscript:3 superscript:6. It also has excellent high-temperature resistance, maintaining stable performance and structural integrity in continuous high-temperature environments (up to 400℃) and resisting instantaneous high temperatures up to 600℃, which is far superior to ordinary steel locating pins. The material's excellent wear resistance ensures that the round head does not easily wear or deform even under frequent positioning operations, maintaining precise positioning accuracy for a long time, which is crucial for stable operation of manual feeding welding lines.
2. Precision M10 Design, Accurate Positioning & Manual Feeding Compatibility
The locating pin is specially designed for M10 specifications, with a precision-machined thread (M10×1.5 coarse thread and M10×1.0 fine thread superscript:2) and round head structure that perfectly fits M10-sized workpieces, welding fixtures and manual feeding workstations superscript:1 superscript:6. The strict tolerance control (±0.003~±0.005mm) ensures ultra-high positioning accuracy, effectively avoiding workpiece misalignment, tilting or displacement during welding, and ensuring consistent welding quality. The round head design is specially optimized for manual feeding scenarios, featuring a smooth, rounded surface that allows for easy, scratch-free placement of workpieces (especially nuts) by hand, preventing damage to workpiece holes, threads or surfaces — a key advantage over pointed locating pins which are more suitable for automatic feeding systems superscript:6. The precise thread design ensures firm installation with welding jigs, no loosening during high-frequency welding vibration, and stable positioning performance, fully adapting to small-batch, high-standard welding lines with manual feeding. It also matches the standard M10 thread drilling diameter (8.5~8.7mm for M10×1.5, 9.0~9.2mm for M10×1.0) and the standard hole diameter of 11mm for M10 nuts, ensuring seamless assembly with existing fixtures and workstations.
3. Round Head Design, Ideal for Manual Feeding Operations
The integral round head structure is a key design feature of our M10 KCF positioning pin, specifically developed for manual workpiece placement superscript:6. Unlike pointed locating pins which are designed for automatic feeding systems, the smooth, precision-ground round head allows for easy, damage-free guiding of nuts or workpieces into the positioning hole by hand, reducing placement resistance and avoiding scratch or damage to workpiece surfaces, threads or holes — a common pain point in manual feeding welding lines. The round head also ensures gentle contact with workpieces, preventing deformation of thin-walled workpieces or delicate components during positioning, while the precise size ensures accurate alignment with workpiece holes, especially for M10 nuts, ensuring that the nut is correctly positioned before welding. The smooth surface of the round head reduces friction between the pin and workpiece, minimizing wear and extending the service life of both the locating pin and the workpieces. For small-batch, manual feeding production, this design significantly improves positioning efficiency and workpiece quality, reducing rework caused by surface damage or misalignment.
4. Strong Customization Capability for Diversified Needs
We support full non-standard customization according to customer-provided drawings, samples and actual welding working conditions. Whether it is the size specifications (overall length 15~100mm, round head radius 3~8mm, thread specification M10×1.5/M10×1.0 or non-standard threads), material optimization (enhanced wear-resistant KCF, customized insulation layer thickness), or special structural design (extended thread, stepped round head, anti-slip thread), our professional R&D and machining team can provide targeted solutions. We can also customize the locating pin according to the specific model of welding equipment (robotic spot welder, projection welder) and manual feeding workstation, workpiece material (high-strength steel, aluminum alloy, galvanized plate) and working environment (high temperature, high humidity, heavy spatter), meeting the diversified and personalized positioning needs of different industries. For special positioning scenarios, we can also adjust the round head size and surface finish to ensure perfect fit with workpieces and fixtures, and optimize the insulation layer thickness according to specific current isolation requirements.
5. Durable and Wear-Resistant, High Cost-Effectiveness
The combination of premium KCF material and advanced manufacturing process greatly enhances the wear resistance, impact resistance and corrosion resistance of the M10 KCF Round Head Locating Pin. The high hardness (HRC 45-50) and wear-resistant surface ensure that the locating pin can withstand long-term high-frequency positioning and manual feeding operations without wear or deformation, extending the replacement cycle. Compared with ceramic locating pins, it has a longer service life (5-8 times that of ordinary ceramic pins), reducing production downtime and maintenance costs superscript:3 superscript:6. The excellent high-temperature resistance and insulation performance avoid frequent replacement caused by material aging or insulation failure, further improving cost-effectiveness. Its durable performance also ensures stable positioning accuracy in small-batch production, reducing the rate of defective products and improving production efficiency, making it a cost-efficient choice for small-batch, high-standard welding lines with manual feeding. Additionally, the round head’s precision machining ensures consistent performance, reducing the need for frequent adjustments and maintenance, and its smooth surface reduces workpiece damage, lowering rework costs.
Wide Application Scenarios
Our M10 KCF Round Head Locating Pin is widely used in various resistance welding equipment with manual feeding systems, highly compatible with mainstream robotic spot welders, projection welders, fixed spot welders, welding jigs and manual feeding workstations at home and abroad. It is specially designed for M10-sized workpieces and manual feeding scenarios, and its core application fields include:
-
Automotive manufacturing: Precision positioning of M10-sized workpieces such as auto body components, chassis brackets, engine parts and fasteners during welding with manual feeding systems. The KCF material's insulation performance prevents current conduction damage to workpieces and nut threads, while the round head design ensures scratch-free manual placement of nuts, adapting to small-batch, high-precision production needs. It is widely used in semi-automated welding lines of automotive manufacturers, especially suitable for welding of galvanized auto parts and high-strength steel components, and perfectly matches the standard hole diameter of 11mm for M10 nuts. The M10 thread design perfectly matches automotive welding fixtures, ensuring stable positioning during welding.
-
Hardware & fastener industry: Precision positioning of M10 nuts, bolts and mechanical parts during resistance welding with manual feeding systems. The precise thread and round head design ensure accurate positioning of fasteners, avoiding welding deviation and ensuring firm bonding between fasteners and workpieces, while preventing scratch or damage to fastener threads. It is suitable for small-batch production lines of hardware fasteners, reducing the frequency of locating pin replacement and improving production efficiency. The KCF material's toughness and wear resistance also adapt to the harsh working environment of hardware processing, resisting the erosion of dust and welding spatter, and ensuring smooth operation of manual feeding workstations.
-
Sheet metal fabrication: Positioning of M10-sized sheet metal components, cabinets and brackets during welding with manual feeding systems. The round head design ensures smooth, scratch-free guiding and accurate positioning of workpieces, while the high positioning accuracy ensures that the sheet metal components are welded in the correct position, avoiding deformation and improving product consistency. For narrow operation spaces, the compact design of the locating pin can better adapt to the working environment, and the easy installation and disassembly feature facilitates quick maintenance and replacement. It is also suitable for welding of thin-walled sheet metal components and delicate workpieces, where the round head design prevents workpiece damage.
-
General industrial manufacturing: High-standard positioning in small-batch welding scenarios with manual feeding systems, such as electrical equipment, construction machinery, instrumentation, railway accessories and shipbuilding parts. The M10 KCF locating pin provides stable and accurate positioning support, ensuring welding quality and production efficiency, especially for workpieces with strict positioning accuracy and surface quality requirements. Its excellent high-temperature resistance and insulation performance also make it suitable for high-temperature welding scenarios such as submerged arc welding, expanding the application scope. It is also applicable to precision mechanical processing scenarios that require high positioning accuracy and compatibility with manual feeding operations.
Why Choose Jiahe M10 KCF Round Head Locating Pin?
With more than 10 years of deep cultivation in the field of automated welding equipment and accessories, Guangzhou Jiahe is a national high-tech enterprise with a complete R&D, production and quality control system. Our M10 KCF Round Head Locating Pin inherits Jiahe's consistent quality concept, integrating professional KCF material application, precision machining technology and user-oriented design tailored for manual feeding systems. It is widely recognized by domestic and foreign customers for its reliable performance, precise positioning, long service life and strong customization capability, establishing a good brand reputation in the global welding industry. We strictly control every link from KCF raw material selection to production and inspection, ensuring that each locating pin meets international standards (GB, DIN, ISO, ANSI) and customer requirements, especially for the precise control of KCF material heat treatment and round head machining which are the core of the product. The advanced CNC machining and precision grinding technology ensure the locating pin's stability in high-demand manual feeding welding scenarios, and our material selection fully considers the characteristics of different welding environments and workpiece requirements.
We provide one-stop after-sales service and technical support, responding quickly to customer needs such as product consultation, customization scheme design, installation guidance and after-sales maintenance. We are committed to becoming a reliable partner in the field of automatic welding, providing customers with cost-effective M10 KCF Round Head Locating Pin solutions and boosting the stability and efficiency of welding lines with manual feeding systems, whether for standard M10 positioning scenarios or special customization needs.
