Ball Head Cranked Bent Electrode | High-Precision Custom Welding Electrode
Product Overview

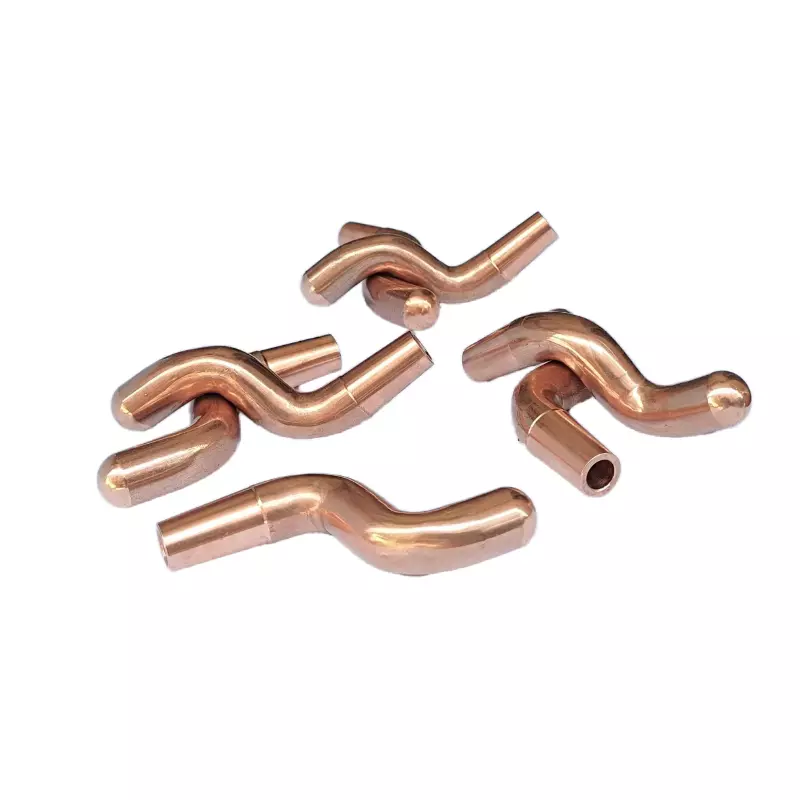

Guangzhou Jiahe Automation Equipment Co., Ltd. Ball Head Cranked Bent Electrode is a high-precision, multi-functional resistance welding accessory, innovatively combining the crank bent structure and spherical welding head design. It is specifically engineered to solve the welding challenges of confined, hard-to-reach positions and irregular workpieces that standard straight electrodes or single-structured bent electrodes cannot handle. As a core product in our special-shaped electrode series, this electrode is independently R&D and manufactured to deliver uniform, stable and high-quality welding results for complex industrial manufacturing scenarios, perfectly adapting to the high-standard requirements of automated welding production lines.
Integrating premium alloy materials, advanced precision machining technology and customizable design, our Ball Head Cranked Bent Electrode is fully compatible with mainstream spot welding, projection welding and seam welding equipment at home and abroad. Its unique ball head design ensures uniform force and current distribution during welding, while the crank bent structure breaks through the space limitation of welding positions. With excellent electrical conductivity, superior wear resistance, strict dimensional accuracy and long service life, it has become the preferred choice for high-end automated welding in automotive manufacturing, home appliance industry, hardware and sheet metal fabrication, and other key fields.
Premium Material & Advanced Manufacturing Process
Adhering to the production principle of "Materials as the foundation, technology as the core, and quality as the life", we select high-performance alloy materials for our Ball Head Cranked Bent Electrode, mainly including chromium zirconium copper (CrZrCu) and RWMA Class 2 (C18200) copper-chromium alloy — materials highly recommended for high-volume, high-frequency welding operations, especially suitable for spot welding hot or cold rolled steels, galvanized and coated materials. All raw materials undergo strict incoming inspection, including purity testing and performance verification, to ensure stable electrical conductivity, strong heat resistance and excellent mechanical properties.
Our Ball Head Cranked Bent Electrode adopts an integrated manufacturing process of cold extrusion forming, high-precision CNC machining, professional heat treatment and fine surface polishing. The cold extrusion forming ensures the overall structural integrity and high structural strength of the electrode, effectively avoiding fracture, deformation or wear under high-frequency welding pressure and high-temperature working conditions. The crank bent part is precisely machined with customized angles and offsets to adapt to different confined welding spaces, while the ball head welding surface is polished to a high finish, ensuring uniform current transmission and preventing welding spatter. Strict tolerance control is implemented throughout the production process, and every finished product undergoes comprehensive quality inspection, including dimensional accuracy testing, conductivity detection, wear resistance verification and surface defect inspection, to ensure zero defects before delivery.
Core Product Advantages
1. Integrated Crank Bent & Ball Head Design for Complex Scenarios
The optimized crank bent structure is customized according to the actual welding space and workpiece shape, effectively breaking through the limitations of standard straight electrodes and ordinary bent electrodes, and can easily reach narrow gaps, complex corners, deep cavities and other hard-to-reach positions. The spherical welding head design ensures full contact with the welding surface, enabling uniform force and current distribution, avoiding local overheating or uneven welding spots, and significantly improving the welding qualification rate and workpiece appearance. This integrated design is especially suitable for welding irregular workpieces such as curved surfaces, flanges and special-shaped components.
2. Excellent Conductivity & Efficient Heat Dissipation
Made of high-performance copper alloy materials, the Ball Head Cranked Bent Electrode features superior electrical and thermal conductivity, which can quickly transfer current and heat, reduce energy loss and avoid overheating of the electrode during long-term high-frequency welding operations. Some models are equipped with built-in water cooling channels extending to the ball head, which further improves heat dissipation efficiency, prolongs the service life of the electrode, and enables it to outperform cast or forged electrodes with similar structures in terms of durability.
3. Ultra-High Dimensional Precision & Stable Assembly
Adopting high-precision CNC machining and strict quality control system, all dimensions of the Ball Head Cranked Bent Electrode (including overall length, outer diameter, ball head diameter, crank angle, offset and taper) meet international standards and can be perfectly matched with standard welding equipment (such as 4RW, 5RW standard tapers). High dimensional consistency ensures stable assembly with welding equipment, avoids loose connection or misalignment during welding, and guarantees consistent welding quality, fully adapting to high-speed automated welding production lines.
4. Strong Customization Capability for Diversified Needs
We support full non-standard customization according to customer-provided drawings, samples and actual welding working conditions. Whether it is the crank bending angle (single bend or double bend), ball head diameter (customizable from 2mm to 10mm), crank offset, overall length, or the shape of the welding surface (spherical, semi-spherical), our professional R&D and machining team can provide targeted solutions to meet the diversified and personalized welding needs of different industries and workpieces.
5. Long Service Life & High Cost-Effectiveness
The combination of premium alloy materials and advanced manufacturing processes greatly enhances the wear resistance, high-temperature oxidation resistance and impact resistance of the Ball Head Cranked Bent Electrode. It is not easy to deform, wear or damage under long-term high-frequency welding operations, effectively extending the replacement cycle. This not only reduces production downtime and maintenance costs, but also lowers the overall production cost for customers, achieving high cost-effectiveness.
Wide Application Scenarios
Our Ball Head Cranked Bent Electrode is widely used in various automated resistance welding equipment, highly compatible with mainstream welding machines at home and abroad. It is especially suitable for welding scenarios with confined spaces, irregular workpieces and high-quality requirements, and its core application fields include:
-
Automotive manufacturing: Welding of auto body components, chassis, engine parts, sheet metal flanges and other hard-to-reach positions, especially for curved surface welding and narrow-space assembly welding
-
Home appliance industry: Welding of metal parts for refrigerators, washing machines, air conditioners, such as pipeline joints, shell flanges and narrow-space internal components
-
Hardware & sheet metal fabrication: Precision welding of complex structural parts, special-shaped components, small workpieces and narrow-space joints
-
General industrial manufacturing: High-standard resistance welding of special-position workpieces, high-volume production lines requiring stable welding performance and beautiful welding appearance
Why Choose Jiahe Ball Head Cranked Bent Electrode?
With more than 10 years of deep cultivation in the field of automated welding equipment and accessories, Guangzhou Jiahe is a national high-tech enterprise with a complete R&D, production and quality control system. Our Ball Head Cranked Bent Electrode inherits Jiahe's consistent quality concept, integrating professional design, premium materials and advanced technology. It is widely recognized by domestic and foreign customers for its reliable performance, precise dimensions, long service life and strong customization capability, establishing a good brand reputation in the global welding industry.
We provide one-stop after-sales service and technical support, responding quickly to customer needs such as product consultation, customization scheme design, installation guidance and after-sales maintenance. We are committed to becoming a reliable partner in the field of automated welding, providing customers with cost-effective Ball Head Cranked Bent Electrode solutions and boosting the stability and efficiency of automated production lines.
