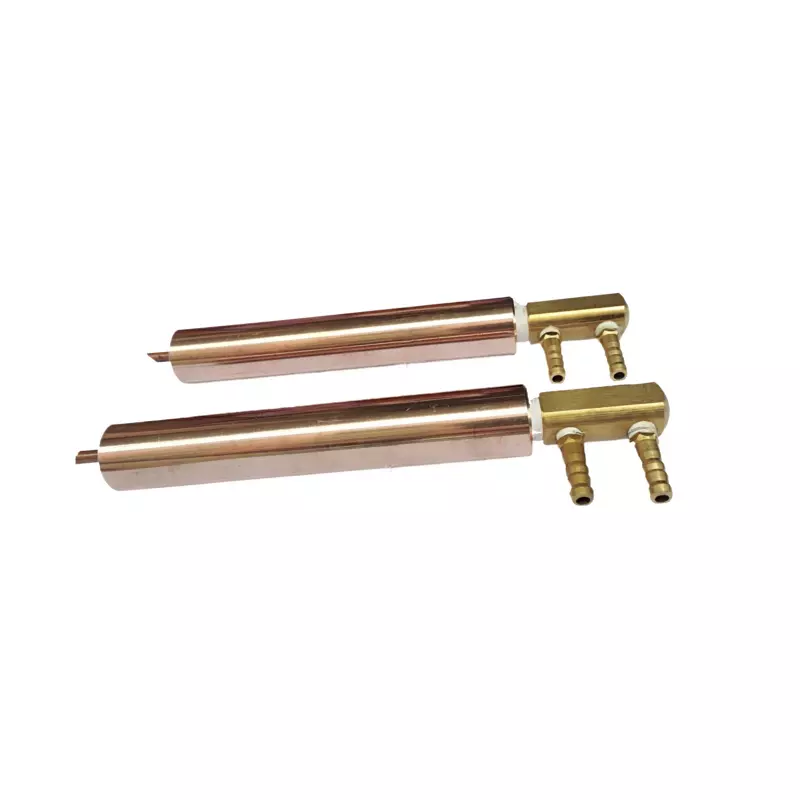

Electrode Shank | High-Precision Conductive Connecting Component for Resistance Welding
Product Overview
Guangzhou Jiahe Automation Equipment Co., Ltd. Electrode Shank is a core connecting and conductive component designed exclusively for resistance welding systems, serving as a critical bridge between welding machines, electrode caps, and welding workpieces. As an indispensable part of automated welding lines, it integrates high-precision structural design, premium conductive materials and robust manufacturing technology, mainly used to fix, support and transmit current to welding electrodes (such as nut electrode caps, spot welding electrodes, pointed electrodes) superscript:4. Our Electrode Shank effectively solves common pain points in long-term welding operations, such as poor current transmission, loose connection with electrodes, deformation under high temperature and pressure, short service life, and inaccurate positioning — issues that directly affect welding efficiency and product quality. Available in various types (straight, bent, crank, L-shaped) to adapt to different welding angles, operation spaces and equipment models, it is perfectly compatible with mainstream resistance welding equipment (fixed spot welders, suspended spot welders, robotic spot welders, automatic nut welding machines) and common electrode specifications (M3-M12), widely applied in automotive manufacturing, hardware processing, sheet metal fabrication, precision machinery and other industries requiring high-efficiency, high-standard resistance welding, especially suitable for large-batch automated production lines.
Engineered with a precision-machined connecting structure and standard taper (1/9.6) superscript:4, our Electrode Shank ensures tight connection with electrode caps and welding machine arms, avoiding loosening or poor contact during high-frequency welding vibration and high-pressure operation. The shank body adopts an integrated design to enhance structural strength, preventing fracture or deformation caused by concentrated stress during welding. With excellent electrical conductivity and heat dissipation performance, it can quickly and stably transmit large currents to the welding electrode, ensuring uniform current distribution and stable welding arcs, which is crucial for maintaining consistent welding quality. Each Electrode Shank undergoes strict quality inspection before leaving the factory, including dimensional accuracy testing, conductivity detection, and load-bearing performance verification, ensuring reliable operation in harsh welding environments (high temperature, high pressure, welding spatter) and long-term stable service.
Premium Material & Advanced Manufacturing Process
Adhering to the production principle of "Materials as the foundation, technology as the core, and quality as the life", we select high-performance conductive and structural materials for our Electrode Shank, mainly including chromium zirconium copper (CrZrCu, CuCrZr), beryllium copper (BeCu), and optional carbon steel or stainless steel for special structural requirements superscript:4. Chromium zirconium copper is the preferred material for most welding scenarios, as it combines excellent electrical conductivity (≥85% IACS), high-temperature softening resistance (continuous use temperature up to 500℃), and good wear resistance — adding trace amounts of chromium and zirconium to pure copper significantly improves its hardness and structural stability while retaining superior conductive performance superscript:4. Beryllium copper is used for high-strength scenarios, featuring higher hardness (HRB 95~104) and high-temperature resistance (softening temperature up to 650℃), suitable for electrode shanks that bear large pressure during welding superscript:4. All raw materials undergo strict incoming inspection, including material composition testing, conductivity verification and mechanical performance detection, to ensure stable performance and lay a solid foundation for long-term reliable operation. For special high-temperature welding scenarios, we also offer tungsten-copper alloy options, leveraging their high melting point and high-temperature stability to avoid deformation and wear.
Our Electrode Shank adopts an integrated manufacturing process of forging, high-precision CNC machining, professional heat treatment and fine surface polishing. The advanced forging technology enhances the material density and structural integrity, ensuring the shank body’s resistance to impact, deformation and fracture under high-pressure welding conditions. The connecting part (tapered end) is precision-machined according to standard specifications (1/9.6 taper), with a high finish (Ra≤0.2μm) to ensure tight fit with electrode caps, avoiding current loss caused by poor contact. The shank body is processed with strict tolerance control (±0.005~±0.01mm), covering key dimensions such as diameter (8~30mm for standard models), overall length (50~200mm, including 80×12, 100×15 and other common specifications), and taper accuracy. Professional heat treatment (quenching and tempering) is adopted to further improve the material’s hardness and toughness, enhancing wear resistance and service life. Every finished product undergoes comprehensive quality inspection, including dimensional accuracy testing, conductivity detection, load-bearing capacity verification and surface defect inspection, to ensure zero defects before delivery. Advanced surface anti-oxidation treatment is also applied to prevent rust and corrosion, extending service life in harsh welding environments with dust and welding spatter.
Core Product Advantages
1. Stable Current Transmission & Efficient Heat Dissipation
Made of high-performance conductive materials (CrZrCu, BeCu), our Electrode Shank features superior electrical conductivity and thermal conductivity, which can quickly and stably transmit large currents to welding electrodes without obvious current loss. The optimized shank structure ensures uniform current distribution, avoiding local overheating caused by uneven current transmission — a common problem of traditional electrode shanks. The excellent heat dissipation performance allows rapid dissipation of heat generated during welding, preventing the shank body from softening, deforming or aging due to long-term high-temperature operation. Chromium zirconium copper shanks maintain stable conductivity and structural strength even at 500℃, while beryllium copper options can withstand higher temperatures (up to 650℃) for extreme working conditions superscript:4. This stable performance ensures consistent welding arcs and uniform welding seams, greatly improving the qualification rate of welded products.
2. High Structural Strength & Durability
The integrated forging and heat treatment process enhances the overall structural strength and toughness of the Electrode Shank, making it resistant to impact, deformation and fracture under high-pressure welding and high-frequency vibration. The precision-machined taper connection ensures tight fit with electrode caps and welding machine arms, avoiding loosening or damage during long-term use. The high-hardness material (HRC 75-85 for CrZrCu, HRB 95~104 for BeCu) provides excellent wear resistance, reducing wear caused by frequent installation and disassembly of electrode caps superscript:4. The surface anti-oxidation treatment prevents rust and corrosion, extending the service life of the shank in harsh welding environments. Compared with ordinary cast or machined electrode shanks, our product has 3-5 times longer service life, reducing production downtime and maintenance costs.
3. Precise Positioning & Wide Compatibility
Adopting high-precision CNC machining and strict quality control, all dimensions of the Electrode Shank meet international standards (GB, DIN, ISO, ANSI) and perfectly match mainstream resistance welding equipment, including fixed spot welders, suspended spot welders, robotic spot welders and automatic nut welding machines. The standard 1/9.6 taper ensures universal compatibility with most electrode caps (P, D, E, F types) and electrode heads, while the precise shank diameter and length ensure accurate positioning of welding electrodes, avoiding welding deviation caused by misalignment. Standard models cover common specifications such as 80×12, 100×15 (length × diameter), with diameter ranging from 8~30mm and overall length from 50~200mm, compatible with various electrode types (nut electrode caps, spot welding electrodes, pointed electrodes) and workpiece materials (steel plates, galvanized plates, high-strength steels). The high dimensional consistency ensures easy installation and replacement, adapting to high-speed automated welding production lines.
4. Diverse Types & Strong Customization Capability
We offer a full range of Electrode Shank types to meet different welding needs: straight type for standard welding positions, bent type (L-shaped, crank type) for narrow operation spaces or special welding angles, and customized shapes for non-standard equipment. We support full non-standard customization according to customer-provided drawings, samples and actual welding conditions. Customizable options include size specifications (diameter, overall length, taper accuracy), material selection (CrZrCu, BeCu, stainless steel, tungsten-copper alloy), shank type (straight, bent, crank), surface treatment (silver plating, nickel plating for enhanced conductivity), and connection structure design (non-standard taper, thread connection). We can customize the electrode shank according to specific welding equipment, electrode types and operation scenarios, meeting diversified and personalized needs of different industries. For robotic welding arms, we also optimize the shank structure to ensure lightweight and precise positioning, adapting to the high-speed movement of robotic welding systems.
5. Easy Installation & Cost-Effective
Our Electrode Shank is designed with user-friendliness in mind, featuring a simple and practical connection structure that allows quick installation and disassembly with common tools, reducing replacement time and improving production efficiency. The high wear resistance and long service life reduce the frequency of shank replacement, lowering maintenance costs and production downtime. The stable performance ensures consistent welding quality, reducing defective product rates and further improving production efficiency. Compared with imported electrode shanks, our product offers equivalent or superior performance at a more competitive price, achieving high cost-effectiveness for global customers. The universal compatibility also reduces the need for storing multiple types of shanks, simplifying inventory management and reducing costs.
Wide Application Scenarios
Our Electrode Shank is widely used in various resistance welding equipment, highly compatible with mainstream fixed spot welders, suspended spot welders, robotic spot welders, automatic nut welding machines and welding jigs at home and abroad. As a core connecting and conductive component, it is suitable for multiple industrial fields requiring high-efficiency, high-standard resistance welding, especially large-batch automated production lines. Core application fields include:
-
Automotive manufacturing: Used in the welding of auto body components, chassis, engine brackets, interior parts and other components, matching robotic welding arms and automatic nut welding machines. It is suitable for connecting nut electrode caps, spot welding electrodes and other accessories, ensuring stable current transmission and precise positioning, adapting to the high-speed production needs of the automotive industry. The bent and crank types are especially suitable for welding in narrow spaces (such as auto body inner panels) where standard straight shanks cannot reach.
-
Hardware & fastener industry: Used in the precision welding of hardware tools, mechanical parts and fasteners, connecting various welding electrodes to ensure firm and stable welding. Its wear resistance and stable performance adapt to the harsh working environment of hardware processing, resisting dust and welding spatter. It is compatible with M3-M12 electrode specifications, meeting the welding needs of different size nuts and fasteners.
-
Sheet metal fabrication: Used in the welding of sheet metal components, cabinets and brackets, especially for narrow operation spaces where bent or crank electrode shanks are needed to reach the welding position. The precise positioning ensures accurate welding, avoiding deviation and workpiece damage, while the stable current transmission ensures neat and beautiful welding seams.
-
General industrial manufacturing: Used in high-standard resistance welding in electrical equipment, precision instruments, heavy machinery and railway accessories, connecting welding electrodes to provide stable current transmission and support. It is suitable for high-temperature welding scenarios with optional tungsten-copper alloy materials, and can be customized to match non-standard welding equipment, expanding application scope to various industrial scenarios.
Why Choose Jiahe Electrode Shank?
With more than 10 years of deep cultivation in the field of automated welding equipment and accessories, Guangzhou Jiahe is a national high-tech enterprise with a complete R&D, production and quality control system. Our Electrode Shank inherits Jiahe's consistent quality concept, integrating professional design, premium materials and advanced technology. It is widely recognized by domestic and foreign customers for its reliable performance, precise dimensions, long service life and strong customization capability, establishing a good brand reputation in the global welding industry. We strictly control every link from raw material selection to production and inspection, ensuring each electrode shank meets international standards and customer requirements, with targeted material selection for different working conditions (high temperature, high pressure, narrow space).
We provide one-stop after-sales service and technical support, responding quickly to customer needs such as product consultation, customization scheme design, installation guidance and after-sales maintenance. We are committed to becoming a reliable partner in the field of automatic welding, providing cost-effective Electrode Shank solutions and boosting the stability and efficiency of automated welding lines, whether for standard scenarios or special customization needs.
